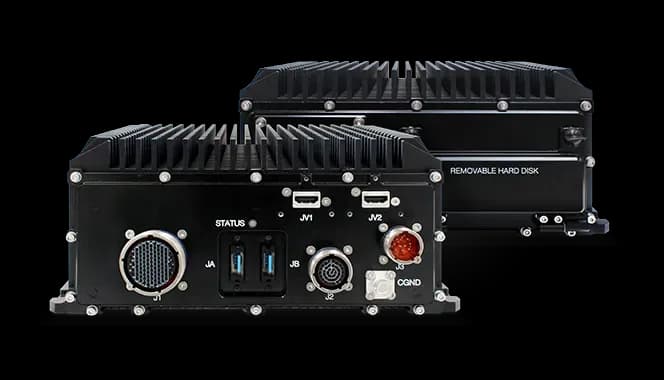

AWS EVOAdvanced Mission Computer with Dual Removable Disk
- Manufacturer
The AWS EVO is a high performance rugged Mission Computer built for heavy edge workloads and multi-media applications. Featuring multiple display control and audio interfaces, the AWS EVO is SWaP-C optimized and has a fanless design with no external airflow prescriptions. The AWS EVO features an high end eight-Core 11th Gen Intel® Xeon® W Processor (Tiger Lake) or a powerful Hexa-Core 9th Gen Intel® Xeon® E Processor (Coffee Lake Refresh) and 32GB DDR4 dual-channel memory to provide an excellent overall performance. Video outputs include three independent ports (2x HDMI + 1x VGA) while input/output ports offer Audio, 4x Gigabit Ethernet ports, 2x USB 3.0 ports and 4x USB 2.0 ports, PS/2, 4x COM ports and 2x SATA 6 Gb/s ports with RAID support. The AWS EVO comes with several storage options: an internal mSATA module, a Type II CFlash slot accessible from the front panel and two front-mounted hot-swappable SATA ports suitable for the installation of two 2.5″ SSDs with Secure Erase option. An internal MiniPCI Express slot is available for further expansion in alternative to the mSATA option. The AWS EVO is compliant to MIL-STD-810G certifications and to RTCA/DO-160G.
At a glance
- DO-160G RTCA Qualified
- 810G MIL-STD Qualified
- 2× Removable SSD
- 0 dBA Fanless
A GOMA ELETTRONICA division
A GOMA RUGGED SOLUTIONS product
The AWS series belongs to GOMA RUGGED SOLUTIONS, GOMA's division for MIL-STD qualified systems. The full datasheet for this model, with configurations and qualifications, lives on its own site.
Visit GOMA RUGGED SOLUTIONSTechnical specifications
| Processor | 11th Gen Intel Xeon(optional)9th Gen Intel Xeon E-2276ML(optional)W-11865MRE(optional) |
|---|---|
| CPU class | Intel Xeon |
| Memory | Up to 64 GB DDR4 (11th Gen) / 32 GB (9th Gen) |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 64 GB |
| Storage | 2x removable 2.5″ SATA SSD with secure erase, 1x removable CFast, 1x internal mSATA |
|---|
| Video outputs | 2x HDMI, 1x VGA |
|---|---|
| Connectors | MIL-DTL-38999 · USB 3.0 with retention |
| Architecture standard | COM Express |
|---|
| Expansion | 1 x mPCIe/mSATA slot |
|---|
| Dimensions | 256 x 116 x 203 mm |
|---|---|
| Weight | 5.3 kg |
| Cooling | Fanless |
|---|---|
| Operating temperature | −45~70 °C |
| Storage temperature | -40–85 °C |
| Humidity | Up to 95% (RTCA/DO-160G Section 6, Category A) |
| Operating altitude | Up to 7620 m (25,000 ft), RTCA/DO-160G Section 4, Category B2 |
| Shock / vibration / free fall | Crash Safety: 20g shock, 11ms (RTCA/DO-160G Section 7, Category B)Shock: 6g shock, 11ms (RTCA/DO-160G Section 7, Category A)Vibrations (fixed wing): qualified according to RTCA/DO-160G Section 8, Category S Curve MVibrations (rotary wing): qualified according to RTCA/DO-160G Section 8, Category U Curve G |
| Other environmental tests | Fungus: Compliant to RTCA/DO-160G, Section 13, Category FTemperature variation: Compliant to RTCA DO-160G Section 5, Category BWaterproofness: Compliant to RTCA/DO-160G, Section 10, Category W |
| Certifications | DO-160MIL-STD-461MIL-STD-810 |
|---|---|
| EMC (emission/immunity) | RTCA/DO-160G |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Documentation
