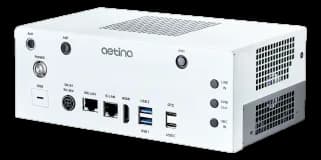

AIE-KX23-1-A1AGX Orin 64GB edge AI computer with 275 TOPS of AI performance
- Manufacturer
AIE-KX23-1-A1 is designed for continuous inference on several sources: video analysis, quality control and robotic applications that cannot wait for the return from a remote server. The body weighs 1.969 kg and the NVIDIA Ampere GPU has 2048 CUDA cores with 64 Tensor Cores.
The CPU has 12 cores on an ARM architecture, with LPDDR5 memory and a Linux operating system. Two serial ports remain available for the automation and the declared storage temperature runs from -40 to 85 °C.
At a glance
- AI module: NVIDIA Jetson AGX Orin
- AI performance: 275 TOPS
- CPU class: ARM Cortex-A78AE
- Processor: 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
- Memory: 64GB 256-bit LPDDR5 204.8 GB/s
Technical specifications
| AI module | NVIDIA Jetson AGX Orin |
|---|---|
| AI performance | 275 TOPS |
| CPU class | ARM Cortex-A78AE |
| Processor | 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
| Graphics | 2048-core NVIDIA Ampere GPU with 64 Tensor Cores |
| Tensor cores | 64 |
| CUDA cores | 2048 |
| Memory | 64GB 256-bit LPDDR5 204.8 GB/s |
|---|---|
| RAM type | LPDDR5 |
| Storage | 64GB eMMC 5.1 |
|---|
| Video outputs | 1× HDMI 2.0 (Type-A) |
|---|
| Ethernet ports | 1× GbE (RJ-45)1× 10GbE (RJ-45) |
|---|---|
| USB ports | 1× USB 2.0 (DB-15)1× USB 2.0 OTG (Type-C)1× USB 3.2 Gen2 (Type-C)2× USB 3.2 Gen1 (Type-A) |
| Serial interfaces | 1× RS-422/4852× UART1× RS-232 |
| Audio | Line-out, Line-in, Mic (optional, requires daughter board)(mic-in) |
| Digital I/O | 5× GPIO(bidir) |
| CAN bus | 2× CAN 2.0b, isolate, CAN FD |
| Expansion | 1× M.2 E-Key 2230 (Wi-Fi/BT)1× M.2 M-Key 2280 (NVMe, PCIe Gen 4 x4) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 6.9–72.25 W |
| Mounting | DIN Rail Mount(optional)Wall Mount(optional) |
|---|---|
| Weight | 1.969 kg |
| Cooling | Fan (active) |
|---|---|
| Operating temperature | -25–70 °C |
| Storage temperature | -40–85 °C |
| Certifications | CEUKCAFCC |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
