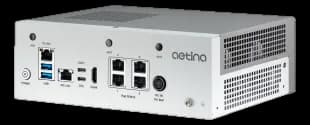

AIE-KX21AGX Orin 64GB edge AI computer with 275 TOPS and a 12-core CPU
- Manufacturer
- Configurations
- 1 available configurations
AIE-KX21 is the Aetina edge AI platform for the most demanding workloads: simultaneous video analysis, sensor fusion and robotic applications that have to decide on the spot. The chassis is wall mounted, weighs 1.852 kg and includes a TPM 2.0 module.
The Arm Cortex-A78AE CPU works with 3MB of L2 cache and the NVIDIA Ampere GPU has 2048 CUDA cores with 64 Tensor Cores and LPDDR5 memory. Two serial ports remain available for PLCs and instrumentation, under a Linux operating system.
At a glance
- AI module: NVIDIA Jetson AGX Orin
- AI performance: 275 TOPS
- CPU class: ARM Cortex-A78AE
- Processor: 12-core Arm® Cortex® -A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
- Memory: 64GB 256-bit LPDDR5 204.8 GB/s
Technical specifications
| AI module | NVIDIA Jetson AGX Orin |
|---|---|
| AI performance | 275 TOPS |
| CPU class | ARM Cortex-A78AE |
| Processor | 12-core Arm® Cortex® -A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
| Graphics | 2048-core NVIDIA Ampere GPU with 64 Tensor Cores |
| Tensor cores | 64 |
| CUDA cores | 2048 |
| Memory | 64GB 256-bit LPDDR5 204.8 GB/s |
|---|---|
| RAM type | LPDDR5 |
| Storage | 64GB eMMC 5.1 |
|---|
| Video outputs | 1× HDMI 2.0 (Type-A) |
|---|
| Ethernet ports | 1× 10GbE (RJ-45)1× GbE (RJ-45) |
|---|---|
| USB ports | 1× USB 3.2 Gen2 (Type-C)1× USB 2.0 (DB-15)1× USB OTG (Type-C)2× USB 3.2 Gen1 (Type-A) |
| Serial interfaces | 1× RS-2321× RS-422/485 (2-in-1)2× UART |
| Audio | Line-out / Line-in / Mic (optional with daughter board)(mic-in) |
| Digital I/O | 5× GPIO(bidir) |
| CAN bus | 2× CAN 2.0b2× CAN 2.0b, isolate, CAN FD |
| PoE | Total PSE ports support up to 60W802.3at PoE+802.3af PoE(RJ45) |
| Expansion | 1× M.2 B-Key 3042/3052 (LTE/4G/5G)1× M.2 E-Key 2230 (Wi-Fi/BT)1× M.2 M-Key 2280 (NVMe, PCIe x2 Gen3) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 1 W(can bus) |
| Battery / UPS | With super capacitor, battery(optional) |
| Mounting | Wall MountDIN Rail Mount(optional) |
|---|---|
| Dimensions | 220 × 75 × 195 mm |
| Weight | 1.852 kg |
| Cooling | Fan (active) |
|---|---|
| Operating temperature | -25–70 °C |
| Storage temperature | -40–85 °C |
| Certifications | FCCUKCACE |
|---|
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| AIE-KX21-1-A2 |
