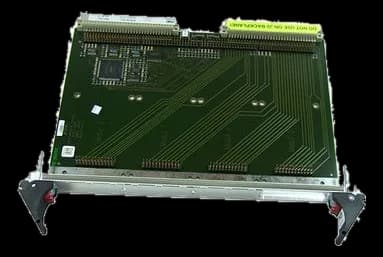

A201SVMEbus carrier for four M-Modules
- Manufacturer
The carrier allows the I/O function of a VME system to be composed by choosing the mezzanine modules: the four M-Module sites are reachable from the aluminum front panel and, in the models with P2 connector, from the rear as well. The interrupt controller handles every M-Module independently.
The board is a double Eurocard of 233.3 × 160 mm, with humidity allowed up to 95% non-condensing and an operating altitude from -300 to 3000 m. Drivers are available for Windows, VxWorks and Linux.
At a glance
- Board function: Carrier
- Architecture standard: VMEbus
Technical specifications
| Board function | Carrier |
|---|---|
| Architecture standard | VMEbus |
| Dimensions | 233.3 × 160 mm |
|---|---|
| Weight | 0.22 kg |
| Operating altitude | -300–3000 m |
|---|---|
| Storage temperature | -40–85 °C |
| MTBF | 430000 h(MIL-HDBK-217F) |
| Operating systems | LinuxVxWorksWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
