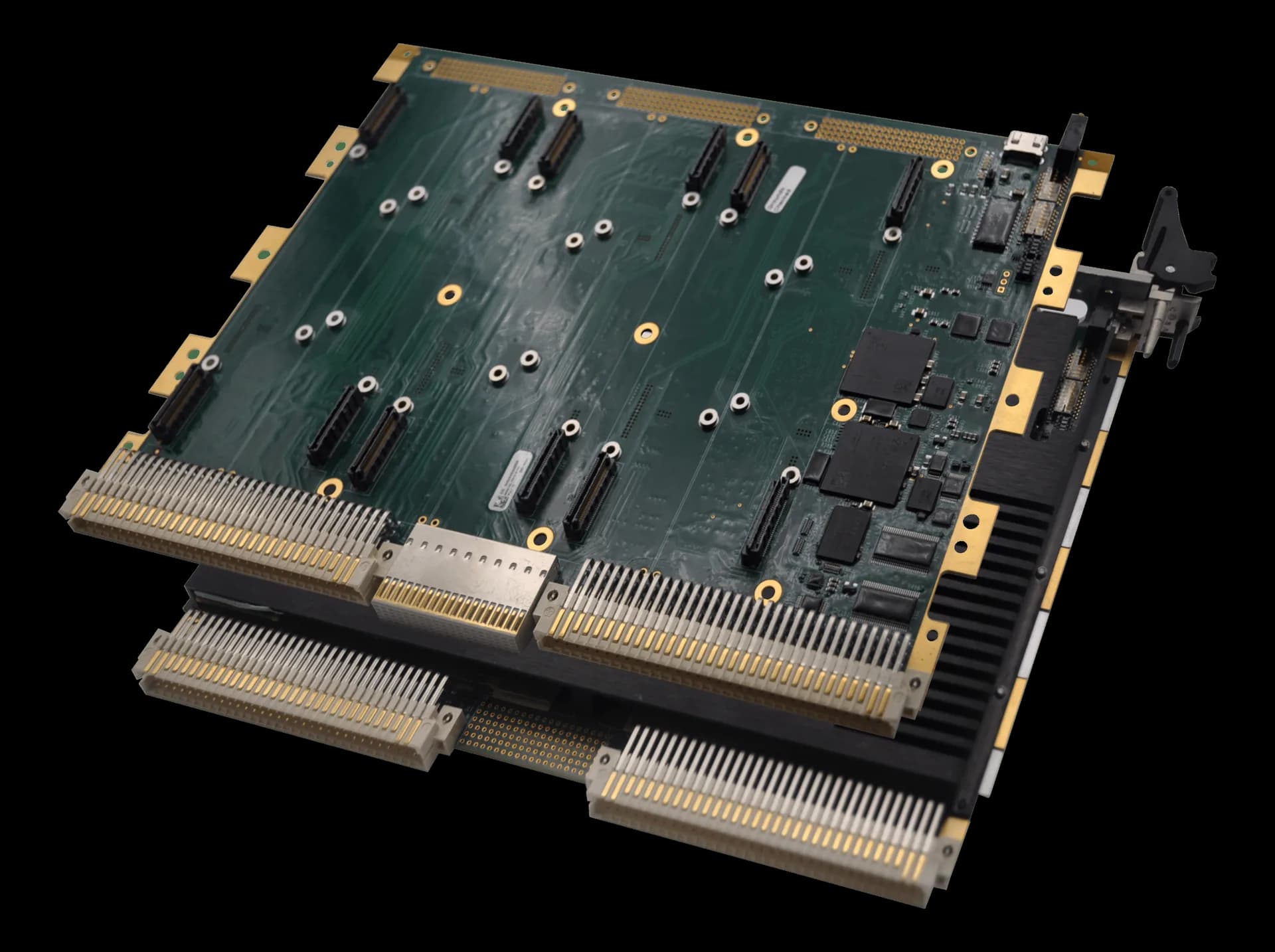

64ARM16U VME board in double Eurocard form factor
- Manufacturer
64ARM1 is an embedded board for the VME bus made by NAI. On-board storage uses NAND flash over a SATA II interface up to 32 GB, with a 256 GB expansion option in slot #6.
A hardware microswitch allows write protect of the SATA drive to be enabled, while the Background Built-in-Test functions run continuous checks where applicable.
The manufacturer operates with AS9100 Rev D and ISO9001:2015 certifications.
At a glance
- CPU cores: 2
- CPU class: ARM
- Memory: 512 MB DDR3L SDRAM GB
- Board function: Single Board – ARM / PowerPC
- Architecture standard: VME64x
Technical specifications
| CPU cores | 2 |
|---|---|
| CPU class | ARM |
| Memory | 512 MB DDR3L SDRAM GB |
|---|
| Storage | SATA II NAND Flash memory capable of providing up to 32 GB(max) |
|---|
| Ethernet ports | two 10/100/1000 Base-T Ethernet portsThe 64ARM1 has two 10/100/1000 Base-T Ethernet ports, with the option to have one to the rear, one to the front I/O, or both to the rear.(optional) |
|---|---|
| Connectors | N-pin connector(male · front) |
| Other I/O | J1 - J6 pin-23 is System (SYS) GND (referenced to card power/system ground). |
| Board function | Single Board – ARM / PowerPC |
|---|---|
| Architecture standard | VME64x |
| Form factor | 6U double Eurocard |
| Bus interface | VME |
| Weight | 0.544 kg |
|---|
| Operating systems | LinuxVxWorks |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
