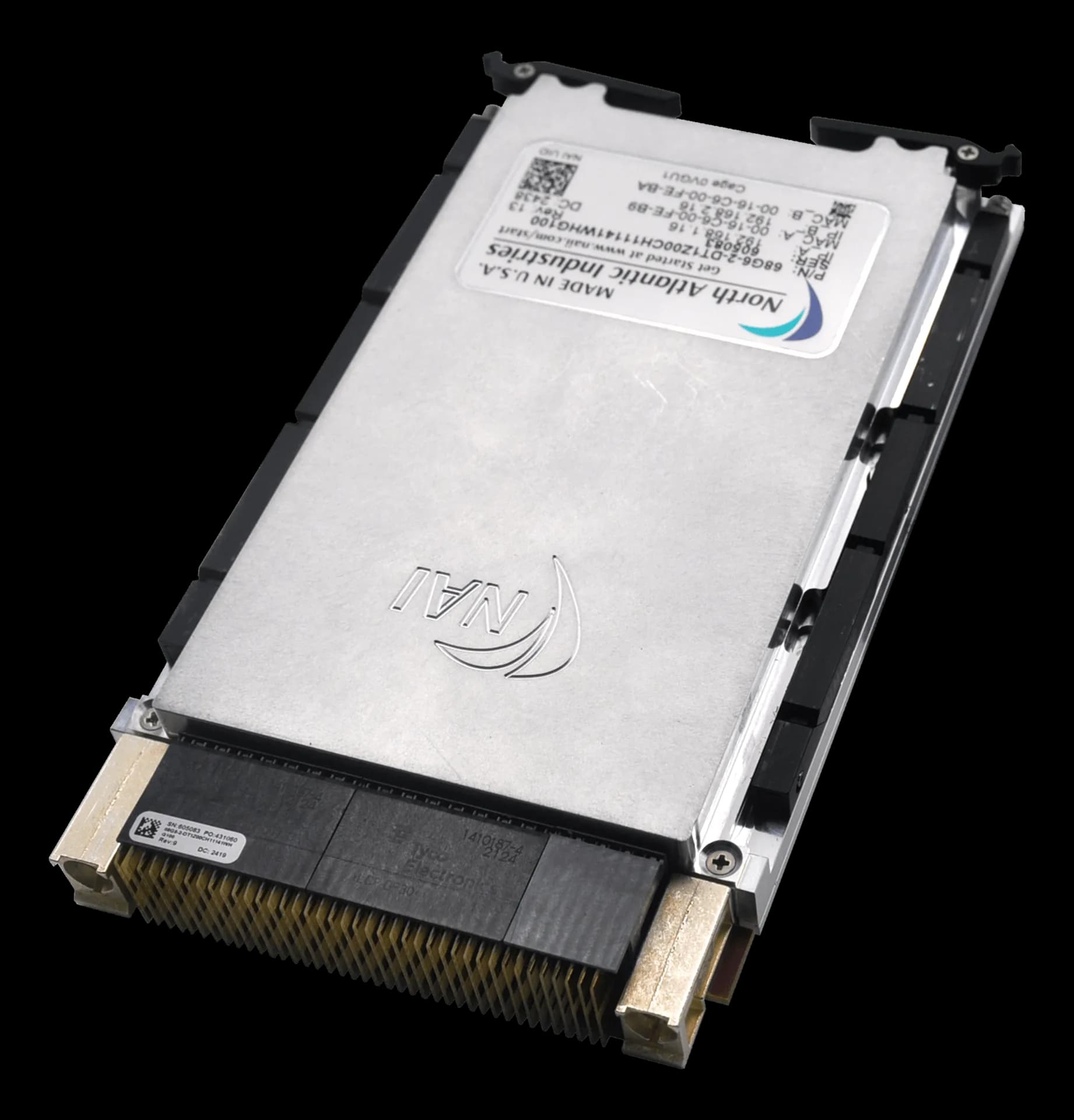

68G6OpenVPX board with ARM Cortex-A53 up to 1.2 GHz and LPDDR4x
- Manufacturer
The 68G6 is an NAI board on OpenVPX open architecture, intended for modular systems where several functions share the same backplane.
The dual or quad-core ARM Cortex-A53 processor works up to 1.2 GHz and sits alongside LPDDR4x memory; the operating system can be Linux or VxWorks. The estimated typical consumption is below 20 W.
The declared operating temperature is 0~55 °C or -40~85 °C depending on the model; the board weighs 0.61 kg.
At a glance
- Processor: dual or quad-core ARM® Cortex®-A53 processor
- FPGA / processing: 1 (Xilinx Zynq UltraScale+)
- CPU frequency: 1.2 GHz
- CPU cores: 4
- RAM type: LPDDR4x
Technical specifications
| Processor | dual or quad-core ARM® Cortex®-A53 processor |
|---|---|
| FPGA / processing | 1 (Xilinx Zynq UltraScale+) |
| CPU frequency | 1.2 GHz |
| CPU cores | 4 |
| Memory | 1 GB LPDDR4 memory module(LPDDR4x) |
|---|---|
| RAM type | LPDDR4x |
| Storage | standard 32 GB SATA storage technology |
|---|
| Ethernet ports | two 10/100/1000Base-TX Ethernet connections (Marvell Alaska 88E1512 PHY)2x 10GBase-KR Ethernet ports to the rearone USB 3.0 port on the backplane and one USB 2.0 port on the front (only one supported at a time)Dual Gig-E port option(s) are available and defined(optional) |
|---|---|
| Serial interfaces | An RS-232 console/maintenance port |
| Board function | EthernetAnalog and digital I/O |
|---|---|
| Form factor | 3U Eurocard |
| Architecture standard | VPX (VITA 46)OpenVPX VITA 65SOSA |
| OpenVPX profile | SLT3-PAY-2U2U-14.2.17(slot) |
| Backplane planes | Two ultra-thin pipe options (PCIe ver. 3.0 (x1)).(fabric) |
| Bus interface | PCIe |
| PSU power | 20 W |
|---|
| Dimensions | 100 × 160 mm |
|---|---|
| Weight | 0.61 kg |
| Operating temperature | -40–85 °C0–55 °C |
|---|---|
| Storage temperature | -55–105 °C |
| Operating systems | VxWorksLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
