PoE power for heavy loads

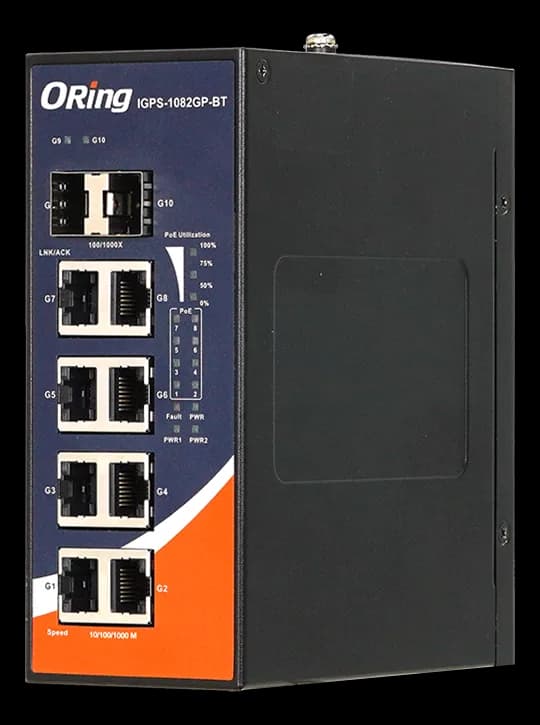

IGPS-1082GP-BT has ten ports: eight 10/100/1000Base-T(X) PoE ports and two 100/1000Base-X SFP ports for fiber. Each PoE port delivers up to 90 W, with a total budget of 240 W: plan loads against the total budget, not the maximum of a single port.
It is an unmanaged switch: no configuration, connect it and it works. The declared Ethernet standards are IEEE 802.3, 802.3u, 802.3ab and 802.3x for flow control.
In the panel, from -40 to 75 °C
It mounts on a DIN rail or on a wall, with an IP30 housing. The power supply is 52–57 V and the switch consumes 12 W. It operates from -40 to 75 °C and can be stored from -40 to 85 °C.
Declared EMC
Immunity according to IEC 61000-4-2 (electrostatic discharge), 61000-4-3 (radiated fields), 61000-4-4 (electrical fast transients), 61000-4-5 (surge), 61000-4-6 (conducted disturbances) and 61000-4-8 (power-frequency magnetic fields), plus EN 55035. Emissions according to EN 55032, CISPR 32 and FCC Part 15B.
