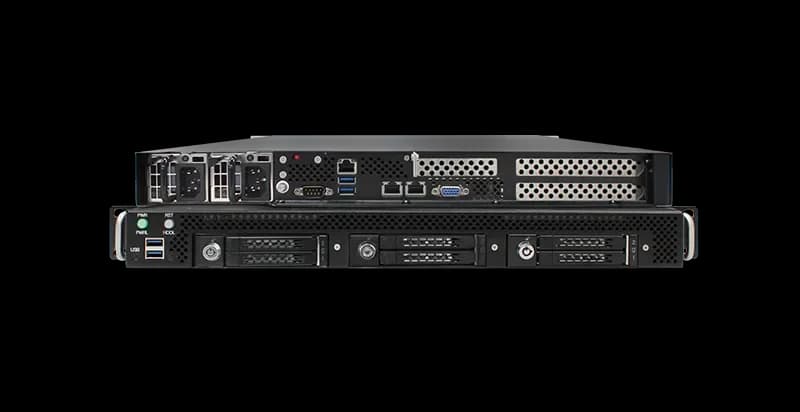

The GAP-151R-S9-SOLO is the 1U rugged edge server of the GAP S9 SOLO series with single-socket Intel Xeon 6 processors: AI and HPC workloads in a 19″ rack chassis built for command centers, field shelters and naval systems.
What it carries
- Intel Xeon 6700/6500 with P-cores for AI and HPC workloads, or 6700 with E-cores for density and performance per watt, TDP up to 225 W;
- up to 2 TB of DDR5-6400 Registered on 8 DIMM slots;
- two onboard M.2 NVMe PCIe 5.0 x2 (2280 and 22110) and, removable, up to 6 U.2 NVMe SSDs or up to 9 2.5″ SATA SSDs;
- 2× PCIe 5.0 x16 full-height full-length and 1× PCIe 5.0 x16 low-profile;
- TPM header.
Network, management, power
Two 10GbE ports on Intel X550 and a dedicated IPMI LAN, plus VGA, two USB 3.2 and one COM on the rear. Remote management is IPMI 2.0 with SPM, watchdog, SNMP and e-mail alarms. Power is redundant AC or DC, with optional single AC.
The chassis
1U 19″ rack, 483 × 44 × 510 mm (540 mm full depth), in aluminium with surface passivation and RAL 9005 powder coating, I/O and power at the rear. Fan cooling, operating temperature 0 to 50 °C, storage -40 to 70 °C.
Qualifications
Built for MIL-STD-810 (temperature and shock) and MIL-STD-167-1A (vibration), with MIL-STD-461 EMI/EMC compliance configurable on request, also with MIL-grade connectors on power and I/O. REACH and RoHS. Operating systems: Windows 10 and 11 IoT.
When it makes sense
It makes sense when you need a qualified rack server that takes three PCIe 5.0 cards and plenty of removable storage, in a single unit. If the specification calls for MIL-STD-461 or MIL connectors on the power input, write to us: they are configuration options, not another product.
