XRS S7 Series

XRS-2U-S7Extreme Rugged Edge Servers

Manufacturer

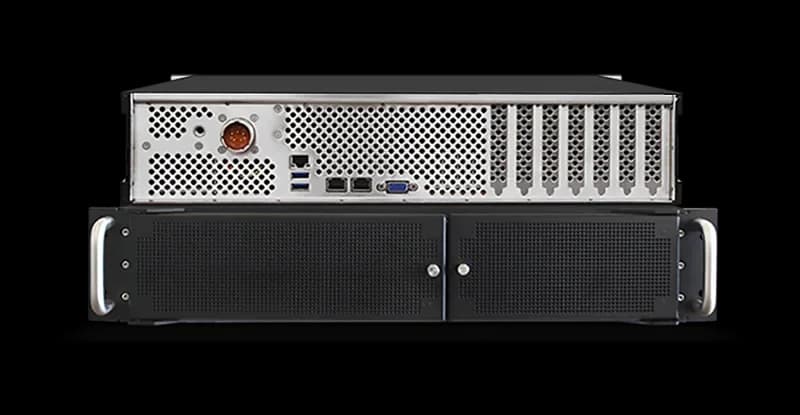

The XRS Series is a family of Extreme Rugged Servers optimized for Edge applications, where they offer superior robustness and highperformance computing technology. The XRS 2U S7 Series features a powerful single or dual socket 3rd Gen Intel® Xeon® Scalable Processor Platform, suitable for the most intense workloads and supporting a generous number of PCIe 4.0 lanes available as PCIe, M.2, and NVMe slots. The integrated IPMI services enhance Edge operations by supporting monitoring, control, and management functions, sending alarm notifications in case of critical events. These servers have a 2U milled aluminium chassis designed for superior resistance and torsional strength, ideal for the physical demands of Edge computing. The XRS 2U S7 Series offers a depth of 450 mm with standard I/O connectors and 475 mm when equipped with round MIL-grade connectors for enhanced durability in the I/O ports and power input. They can host up to four low-profile PCIe boards, including GPUs, FPGA modules, and other powerful PCI Express boards. The front panel includes air filters and features two horizontal doors with thumbscrews to protect access to removable drives, USB connectors, and the power button, with an optional key lock for additional security. The XRS 2U S7 Series also includes three 3.5” drive bays that can accommodate up to nine removable SSDs. Qualified according to MIL-STD-810G for temperature, shocks, and vibrations, and conforming to MIL-STD-461 for EMI/EMC, the XRS Series Extreme Rugged Servers are robustly built to meet the stringent requirements of Edge computing environments.
