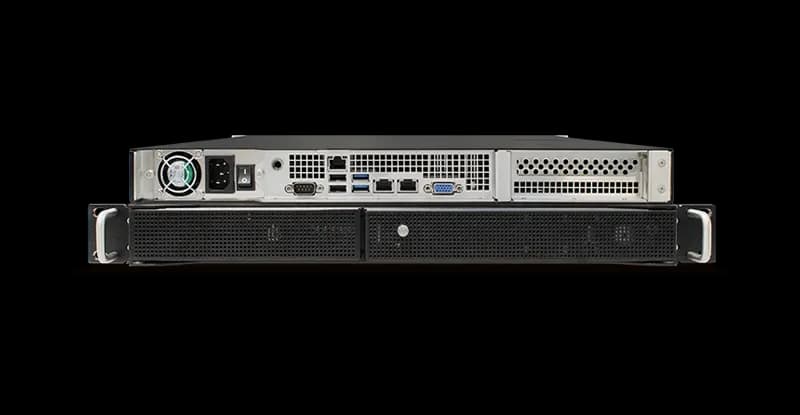

XRS-1U-S8-SOLOExtreme Rugged Edge Servers
- Manufacturer
The XRS Series is a family of Extreme Rugged Servers optimized for Edge applications, offering exceptional robustness and high-performance computing capabilities. The XRS 1U S8 SOLO delivers Rugged performance with a single 5th/4th Gen Intel® Xeon® Scalable Processor, featuring advanced security, PCIe 4.0/5.0 support, and AI acceleration. The integrated IPMI services enhance Edge operations by supporting monitoring, control, and management functions, sending alarm notifications in case of critical events. The XRS 1U S8 SOLO features a 1U milled aluminium chassis providing unmatched resistance and torsional strength essential for Edge computing sites, which often face extreme operational demands. It is available in a 450mm depth configuration with standard I/O connectors, or in a 475mm version when equipped with MIL-grade power input, addressing the specific requirements of rugged Edge applications. The chassis supports one full-length PCIe x16 card and up to two removable 2.5″ SSDs, with options for SAS, SATA, or U.2 NVMe drives. Internal storage includes 2x M.2 NVMe slots. The system features a double-door front panel with an optional door-less variant, front-accessible USB 3.0 ports, and a removable battery holder for enhanced serviceability. Qualified to MIL-STD-810G for temperature, shock, and vibration, and compliant with MIL-STD-461G for EMI/EMC, the XRS Series Extreme Rugged Servers are built to meet the most stringent requirements of Edge computing environments.
At a glance
- 810G MIL-STD Qualified
- 461G MIL-STD EMC
- 2TB DDR5 ECC Max
- 1U Rack-Mount
A GOMA ELETTRONICA division
A GOMA RUGGED SOLUTIONS product
The XRS series belongs to GOMA RUGGED SOLUTIONS, GOMA's division for MIL-STD qualified systems. The full datasheet for this model, with configurations and qualifications, lives on its own site.
Visit GOMA RUGGED SOLUTIONSTechnical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| CPU socket count | 1 |
|---|---|
| CPU class | Intel Xeon |
| Processor | 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable Processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP Up to 205W |
| Chipset | C741 |
| TPM | Header (provision) |
| Memory | Up to 2TB ECC RDIMM, DDR5-5600MT/s in 8 DIMM slots |
|---|---|
| RAM type | DDR5 |
| Maximum RAM | 2 TB |
| ECC support | Yes |
| Storage | Internal: 2x M.2 NVMe; M-Key, 2280/22110 2x SATA Disk on Module (depending on the additional board) Removable: Up to 2x 2.5” SAS SSD or Up to 2x U.2 NVMe SSD or Up to 2x 2.5” SATA SSD |
|---|
| Ethernet ports | 1x Dedicated IPMI LAN port 2x 10GbE with RJ45 connectors |
|---|---|
| USB ports | 2x USB 2.0 ports (2 rear) 5x USB 3.2 Gen1 ports (2 via header; 2 rear; 1 type A) |
| Serial interfaces | 1x COM port |
| Other I/O | 1x COM, 1x BMC LAN, 2x USB 3.2, 2x USB 2.0, 2x 10GbE, 1x VGA (available on the rear panel) |
| Connectors | Standard connectors. Optional D38999 MIL type connectors for Power Input. |
| IPMI management | IPMI2.0, SPM, Watchdog; SNMP and e-mail alarms and notifications |
|---|
| Expansion | 1x PCIe 5.0 x16 slot |
|---|
| Power input | AC or DC input, single PSU. Optional EMC Filter and MIL D38999 connector with single power supply |
|---|
| Rack units | 1 U |
|---|---|
| Dimensions | Width 483mm Depth 450mm – standard I/O ports Depth 475mm – MIL grade Power Input Height 44mm – 1U rack |
| Rugged / conformal coating | Conformal coating on request |
| Chassis material | Milled Aluminum chassis with surface passivation treatment; AISI316L Stainless steel rear panel |
| Weight | 8 kg |
| Mounting | Rack Mount |
| Operating temperature | -5–55 °C |
|---|---|
| Storage temperature | -40–71 °C |
| Certifications | MIL-STD-461MIL-STD-810 |
|---|
| Operating systems | Windows 10 IoTWindowsWindows 11 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
