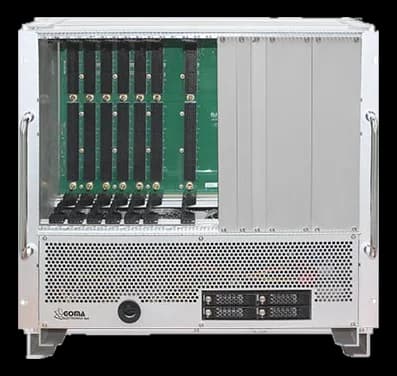

VPX9283ANRack mount 9U OpenVPX microrack for 6U boards, four drive bays
- Manufacturer
VPX9283AN is an OpenVPX microrack in 9U format for 6U boards, intended for 19" rack cabinets: chassis in 2.5 mm aluminum alloy with EMC shielding, 85TE by 283 mm in depth and Surtech 650 treatment.
The backplane is 6U VITA 65, the rear card guides accept 6U transition modules and the hot-swap removable module houses four 2.5" SATA drives; internal ventilation uses four 92 mm fans with air intake at the front and exhaust at the rear. GOMA configures it for the application.
At a glance
- Mounting: Rack Mount
Technical specifications
| Dimensions | 9U 85TE 283 mm |
|---|---|
| Rack units | 9 U |
| Mounting | Rack Mount |
| Chassis material | Lega di Alluminio, 2.5 mm |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
