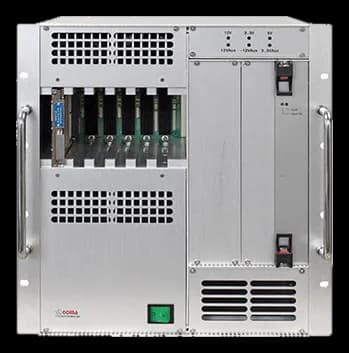

VPX9280C3C9U OpenVPX microrack for 3U CC boards with 3U transition modules
- Manufacturer
VPX9280C3C is an OpenVPX microrack in 9U format for 3U CC boards, used where high processing capacity is required in a small footprint and under critical operating conditions.
Front and rear stay on the same 3U pitch, on the common backplane. GOMA configures it for the application.
At a glance
- Number of slots: 6 slot
- Expansion: Backplane 3U, 6 slot, VITA65 BKP3-DIS06-15.2.7-n
- Power input: Alimentatore modulare 6U 8HP power input: 100-240VAC, min 400W · Alimentatore modulare 6U 8HP power input: 36-72VDC, min 400W V
- Mounting: Rack Mount
Technical specifications
| Number of slots | 6 slot |
|---|---|
| Expansion | Backplane 3U, 6 slot, VITA65 BKP3-DIS06-15.2.7-n |
| Power input | Alimentatore modulare 6U 8HP power input: 100-240VAC, min 400W · Alimentatore modulare 6U 8HP power input: 36-72VDC, min 400W V |
|---|
| Dimensions | 9U 60TE 281 mm |
|---|---|
| Rack units | 9 U |
| Mounting | Rack Mount |
| Chassis material | Lega di Alluminio, 2.5 mm |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
