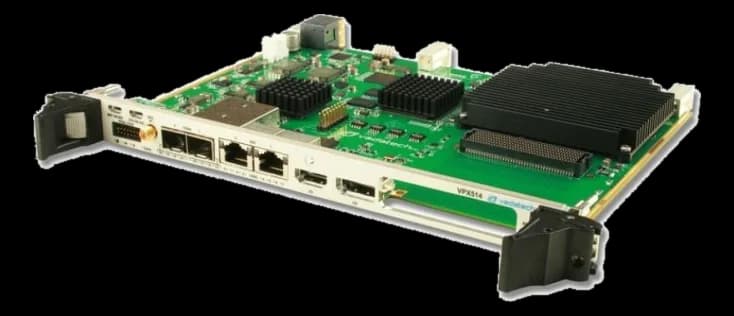

VPX514VPX board with Virtex-6 FPGA and QorIQ processor
- Manufacturer
The programmable part of the board handles data processing and panel I/O, while the QorIQ PPC1020 processor takes care of control and boot. Two SFP+ for Ethernet, two RJ-45 GbE ports, micro USB for the serial, trigger and video outputs are available on the front.
The operating system can be Linux, Windows, Solaris or VxWorks; the certifications declared in the catalog are CE, FCC and UL.
At a glance
- Processor: Onboard Freescale QorIQ PPC1020 with DDR3
- Maximum RAM: 4 GB
- Serial interfaces: RS-232 from FPGA
- Board function: FPGA
- Form factor: 6U double Eurocard
Technical specifications
| Processor | Onboard Freescale QorIQ PPC1020 with DDR3 |
|---|
| Maximum RAM | 4 GB |
|---|
| Ethernet ports | x2 GbE |
|---|---|
| Serial interfaces | RS-232 from FPGA |
| Board function | FPGA |
|---|---|
| Form factor | 6U double Eurocard |
| Architecture standard | VPX (VITA 46) |
| Power consumption | 40 W |
|---|
| Certifications | CEULFCC |
|---|
| Operating systems | LinuxWindowsVxWorksSolaris |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
