Rugged Video Acquisition & Compression

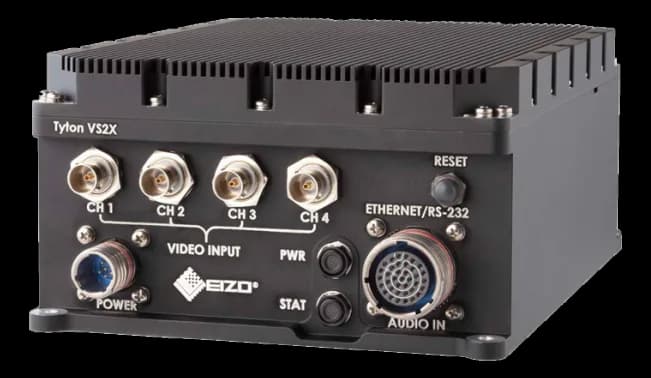

Tyton VS2XRugged H.265 and H.264 video encoder with Ethernet output
- Manufacturer
Tyton VS2X is a ruggedized video encoder for mobile surveillance and reconnaissance platforms: it captures SDI and CVBS sources with KLV metadata, compresses them and carries them onto the onboard network through the 1 Gbps Ethernet output.
The configuration handles up to 8 streams in total, with an encoding latency declared within 60 ms and remote control over SNMP 3.0. Power is 28 VDC on a circular connector, while the environmental qualifications include MIL-STD-810 and IP67 sealing; electromagnetic compatibility follows MIL-STD-461.
At a glance
- Power consumption: 30 W
- Operating temperature: -40–71 °C
Technical specifications
| Power consumption | 30 W |
|---|
| Dimensions | 152.4 × 85.73 × 231.85 mm |
|---|---|
| Weight | 2.92 kg |
| Operating temperature | -40–71 °C |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
