Rugged Video Acquisition & Compression

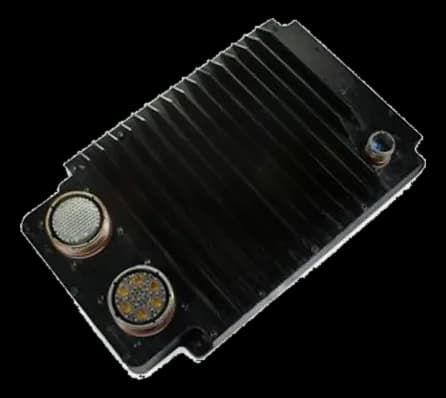

daq8580Standalone rugged system for video compression
- Manufacturer
daq8580 is a rugged system in a standalone version dedicated to video compression on board mobile platforms, where no climate-controlled rack is available: heat is dissipated by conduction and the boards receive conformal coating.
The inputs accept two high definition channels or four in standard definition, processed by a Dual ARM 9 processor alongside a dedicated DSP. Interfacing comprises analog and digital video, Ethernet, RS-422 and Camera Link, with a Linux operating system; the declared environmental qualifications are MIL-STD-704F and MIL-STD-1275B.
At a glance
- Processor: Dual ARM 9
- Operating temperature: -40–85 °C
- Cooling: Conduction-cooled
Technical specifications
| Processor | Dual ARM 9 |
|---|
| Acquisition specifications | 60 fps(sample rate) |
|---|
| Rugged / conformal coating | conformal coating |
|---|
| Operating temperature | -40–85 °C |
|---|---|
| Cooling | Conduction-cooled |
| Operating systems | Linux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
