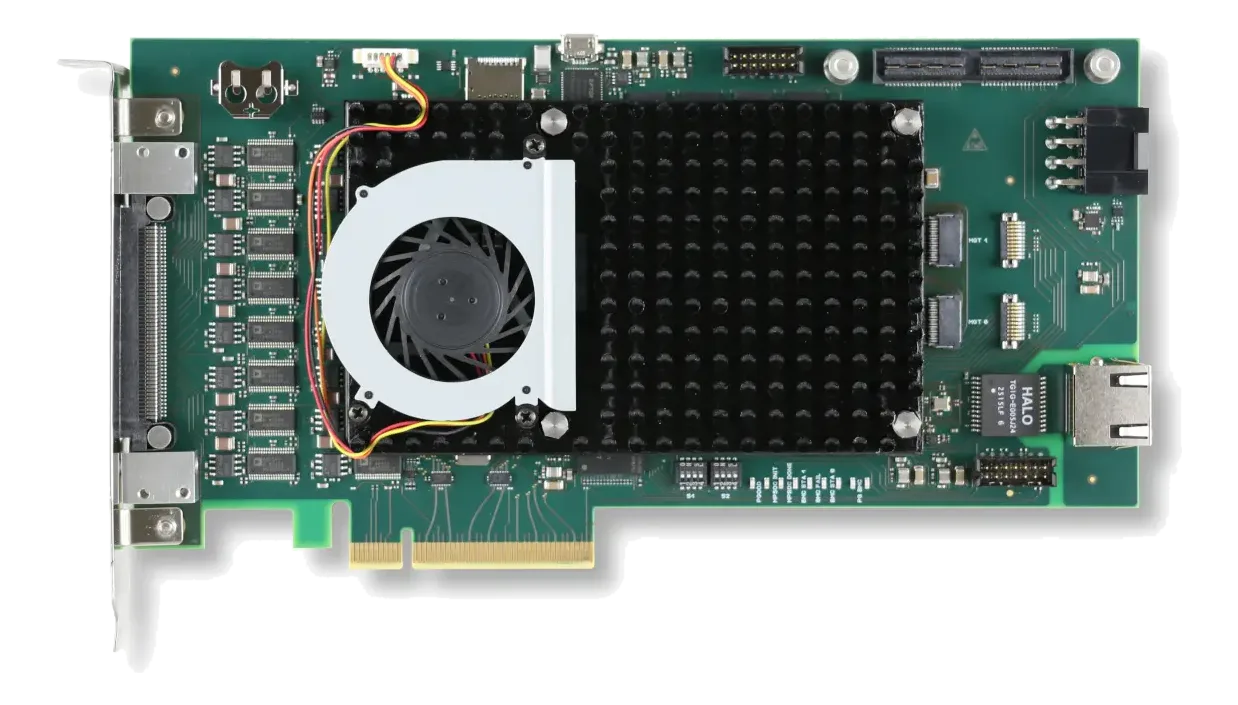

TPCE646-10RPCI Express card with AMD Zynq UltraScale+ MPSoC FPGA and analog I/O
- Manufacturer
- Configurations
- 5 available configurations
PCI Express add-in card, standard height, half-length (98 mm x 154 mm), compliant with PCI Express CEM R3.0, for measurement and control chains where processing takes place on the board and not in the host: user code runs in the MPSoC, in direct contact with the converters.
The MPSoC works with 4 GB of 64-bit DDR4 SDRAM on each of the PL and PS interfaces. On the rear I/O, 64 direct MPSoC lines can be configured as 64 single ended LVCMOS18 or as 32 differential LVDS interfaces, while two groups of four GTY lines reach 25 Gbps; the JTAG header opens in-circuit debugging of PL and PS.
Driver support is available for VxWorks (TPCE646-SW-42), Windows (TPCE646-SW-65), Linux (TPCE646-SW-82) and QNX (TPCE646-SW-95).
At a glance
- Sampling up to 5 Msps per channel
- Simultaneous conversion on all D/A outputs
- Output range configurable per channel
- Ethernet RJ45 10/100/1000 Mbps on rear I/O
- Optional PCI Express x4 Gen2 link to PS
Technical specifications
| Processor | AMD Zynq™ UltraScale+™ XCZU11EG-1FFVC1760I |
|---|
| Memory | 4 GB of 64 bit DDR4 SDRAM for both the PL and PS memory interfaces |
|---|
| Digital I/O | 4 differential digital LVDS I/O linesfour differential LVDS I/O lanes on the front I/O interface64 MPSoC I/Os on a rear I/O connector (directly connected)can be configured as 64 single ended LVCMOS18 or as 32 differential LVDS interfaces |
|---|---|
| Connectors | 2× 38 pin Firefly Micro Flyover Connector (UEC5-019-1-H-D-RA-2-A) (Samtec) |
| Ethernet ports | 10/100/1000 Mbps RJ45 Ethernet Interface |
| Other I/O | JTAG provides in-circuit PL and PS debugginga rear I/O Ethernet port, a USB to UART channel based on an FTDI chip and a PCIe X4 interface multiplexed with the X8 PCIe interfaceavailable via a JTAG header2× 4 GTY (Gigabit Transceiver Ultra High-Speed) linesEach line consists of one differential RX and TX pair.Transmission speeds of up to 25 Gbps are possible. |
| Channels | 8(optional)32(optional) |
|---|---|
| ADC resolution | 16 bit |
| Analog input range | ±10 V±20 V |
| DAC resolution | 16 bit |
| Analog output range | ±5 V±10 V |
| Simultaneous sampling | Simultaneous conversion for all D/A channels. |
| Acquisition specifications | The -3 dB limit of this input stage is at approx. 8 MHzOutput Configuration per BMC Device via SPI Interface from MPSoC (Zynq™ UltraScale+™).LTC2323IUFD-16 (Analog Devices)AD5547BRUZ (Analog Devices)< 1 µs1000 pF10 mAOutput range configurable per D/A channel. |
| Isolation & signal | Can be used as single-ended or differential I/O · LVCMOS18 and LVDS |
| Board function | FPGAAnalog acquisition |
|---|---|
| Architecture standard | PCI Express |
| Bus interface | PCI Express x8 Gen 3 complies with the PCI Express Base Specification, rev. 3.1.Optional PCI Express x4 Gen2 Link to MPSoC PS.PCI Express x8 Gen 3 Link from PCIe Card edge connector to MPSoC PL. |
| Power input | Depends on MPSoC design |
|---|
| Dimensions | 98 mm x 154 mmPeripheral Component Interconnect Express (PCIe), PCI Express CEM R3.0, Standard Height, shortened Half Length PCI Express Add-in Card (98.4mm x 153.50mm) |
|---|---|
| Weight | 0.3 kg |
| Storage temperature | -55–85 °C |
|---|---|
| MTBF | 104000 h |
| Certifications | RoHS |
|---|
| Operating systems | VxWorks(optional)Windows(optional)Linux(optional)QNX(optional) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| TPCE646-SW-25_PCIE |
| TPCE646-SW-42_PCIE |
| TPCE646-SW-65_PCIE |
| TPCE646-SW-82_PCIE |
| TPCE646-SW-95_PCIE |
