RP81919″ rackmount monitor with VGA input and AC/DC power
- Manufacturer
- Configurations
- 6 available configurations

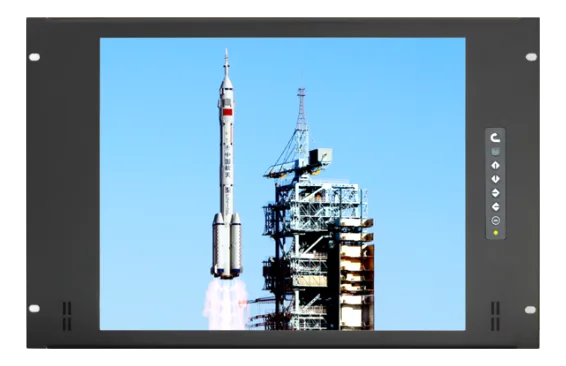

RP819 is a monitor for 19″ rack cabinets: the panel stays on the cabinet and shows the connected equipment, without the keyboard and KVM switch of a monitor drawer.
The 19″ display in 5:4 format has a resolution of 1280x1024, a brightness of 250 cd/m² and a contrast ratio of 1000:1; VGA video input, auto-sensing 100-240 VAC or DC power. The touch is optional, resistive or capacitive.
At a glance
- Display size: 19 ″
- Brightness: Up to 399 standard cd/m²
- Video inputs: VGA
- Contrast ratio: 1000:1
- AC/DC input: AC+DC
Technical specifications
| Display size | 19 ″ |
|---|---|
| Resolution | 1280x1024 SXGA(max) |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | Resistive(optional)PCAP(Capacitive · optional) |
| Video inputs | VGA |
| Contrast ratio | 1000:1 |
| Aspect ratio | 5:4 |
| AC/DC input | AC+DC |
|---|---|
| Power input | Auto-sensing 100 to 240VAC, 50 / 60Hz · Optional: · 48V, 24V or 12VDC |
| Rack units | 8 |
|---|---|
| Dimensions | 480 × 354.8 × 53 mm |
| Weight | 5.7 kg |
| Operating temperature | 0–50 °C |
|---|
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| RP819-BNC |
| RP819-DV4.4 |
| RP819-HS4.4 |
| RP819-IP65 |
| RP819-TPC-10 |
| RP819-TRB |
