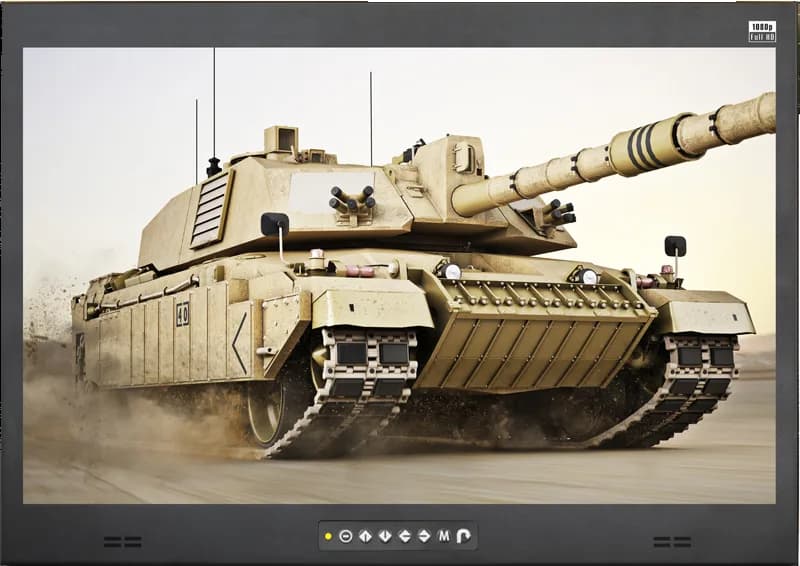

RP-F82121.5" rackmount monitor with LED backlight and 500 cd/m² brightness
- Manufacturer
- Configurations
- 6 available configurations
RP-F821 is a rackmount monitor with a 21.5" diagonal for 19″ rack cabinets and standalone applications, for local control of equipment installed in the rack.
The display combines LED backlight and 500 cd/m² brightness with a 0.248 mm pixel pitch and 16.7 million color reproduction; the hard-coating treatment with 3H surface hardness protects the surface. With 100~240 V AC power the module consumption is 28 W, and the stated MTBF is 30000 h.
The family comprises 6 variants, such as part number RP-F821-AV4.4.
At a glance
- Display size: 21.5 ″
- Resolution: 1920x1080 FHD
- Brightness: 400-599 high cd/m²
- Video inputs: DVI
- AC/DC input: AC
Technical specifications
| Display size | 21.5 ″ |
|---|---|
| Resolution | 1920x1080 FHD |
| Brightness | 400-599 high cd/m² |
| Video inputs | DVIVGAComposite BNCDisplayPort(1.0)DisplayPort(optional · 1.0)HDMI(optional · 2.0)SDI(BNC x 1 / Active through, equalized & re · optional)HDMI(HDMI 1.4, HDCP 1.4 / HDMI 2.0 / HDCP 2.2 · 1.4) |
| Backlight type | LED |
| Response time | 14 ms |
| Display colors | 16.7 M |
| Surface hardness | 3H |
| Surface treatment | Hard-coatingAnti-glare (AG) |
| Contrast ratio | 1000 : 1(typ) |
| Viewing angle | 89/89/89/89 |
| Active area | 476.07 × 267.79 mm |
| Pixel pitch | 0.248 mm |
| Audio | Dual Stereo Speaker 2W x 23.5mm stereo jack30kΩ / 750mV(input)30kΩ / 2.8V(output) |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V66–160 V(optional)9–18 V(optional)18–36 V(optional)36–75 V(optional)180–425 V(optional) |
| Power consumption | 28 W1 W(off)2 W(saving) |
| Rack units | 8 |
|---|---|
| Dimensions | 502 × 353 × 64 mm |
| Weight | 8.8 kg11.2 kg(gross) |
| MTBF | 30000 h |
|---|---|
| Operating altitude | 4876.8 m |
| Operating temperature | 0–55 °C |
| Storage temperature | -20–60 °C |
| Certifications | CEFCCREACHUKCAWEEE (2012/19/UE)RoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| RP-F821-BNC |
| RP-F821-DP |
| RP-F821-DV4.4 |
| RP-F821-HS4.4 |
| RP-F821-SDI |
| RP-F821-TRB |
