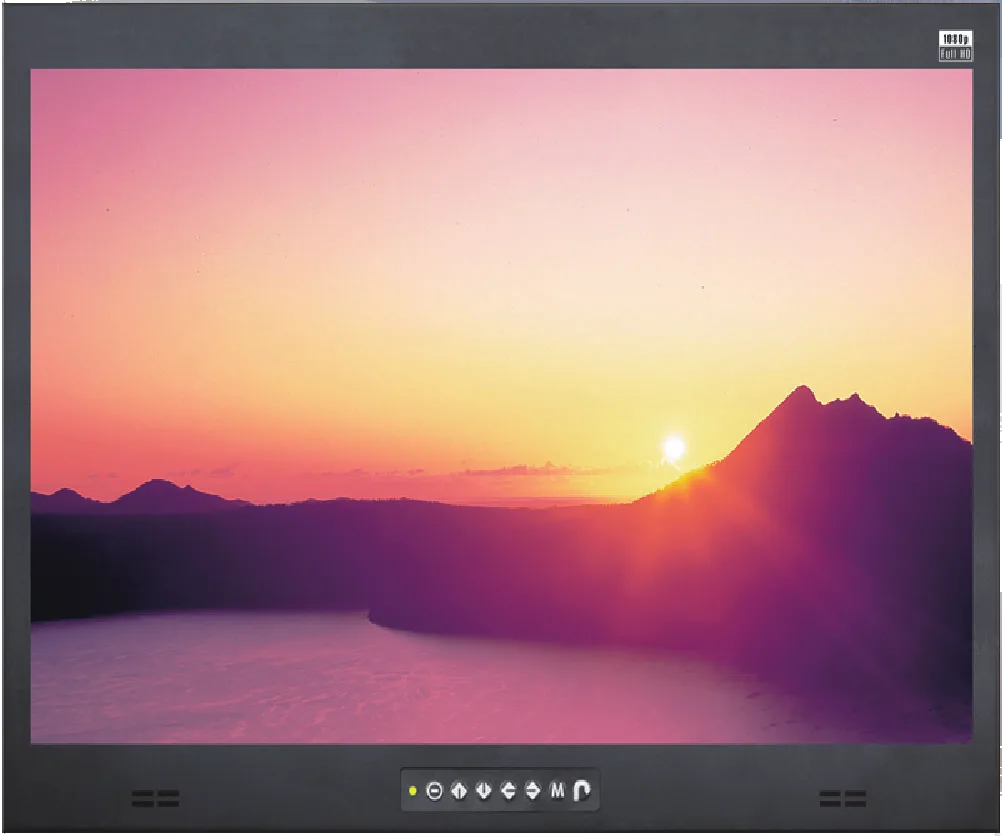

RP-HF82121.5″ rackmount monitor with 1000 cd/m² anti-glare LED display
- Manufacturer
- Configurations
- 5 available configurations
RP-HF821 is a rackmount monitor for 19″ rack cabinets and standalone applications, based on a 21.5″ panel with LED backlight. It handles video sources through Composite BNC, DVI and VGA inputs.
The display combines a brightness of 1000 cd/m² and an anti-glare (AG) surface treatment with 3H hardness, for contexts with high ambient lighting. The module operates in the 0~55 °C range with a stated MTBF of 50000 h.
The RP-HF821 family comprises 6 configurations; one example part number is RP-HF821-AV4.4.
At a glance
- Display size: 21.5 ″
- Resolution: 1920x1080 FHD
- Brightness: 1000+ sunlight cd/m²
- Video inputs: VGA
- AC/DC input: AC
Technical specifications
| Display size | 21.5 ″ |
|---|---|
| Resolution | 1920x1080 FHD |
| Brightness | 1000+ sunlight cd/m² |
| Video inputs | VGAComposite BNCDVISDI(BNC x 1 / Active through, equalized & re · optional)DisplayPort(1.0)DisplayPort(optional · 1.0)DisplayPort(1920x1080) |
| Backlight type | LED |
| Response time | 16 ms |
| Display colors | 16.7 M |
| Surface hardness | 3H |
| Surface treatment | Anti-glare (AG) |
| Contrast ratio | 5000 : 1(typ) |
| Viewing angle | 89/89/89/89 |
| Active area | 476.64 × 268.11 mm |
| Pixel pitch | 0.248 mm |
| Audio | 2ch Linear PCM3.5mm stereo jackDual Stereo Speaker 2W x 230kΩ / 750mV(input)30kΩ / 2.8V(output) |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V18–36 V(optional)180–425 V(optional)66–160 V(optional)36–75 V(optional)9–18 V(optional) |
| Power consumption | 32 W1 W(off)2 W(saving) |
| Rack units | 8 |
|---|---|
| Dimensions | 502 × 353 × 64 mm |
| Weight | 8.8 kg11.2 kg(gross) |
| MTBF | 50000 h |
|---|---|
| Operating altitude | 4876.8 m |
| Operating temperature | 0–55 °C |
| Storage temperature | -20–60 °C |
| Certifications | FCCCEREACHUKCAWEEE (2012/19/UE)RoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| RP-HF821-BNC |
| RP-HF821-DP |
| RP-HF821-DV4.4 |
| RP-HF821-HS4.4 |
| RP-HF821-SDI |
