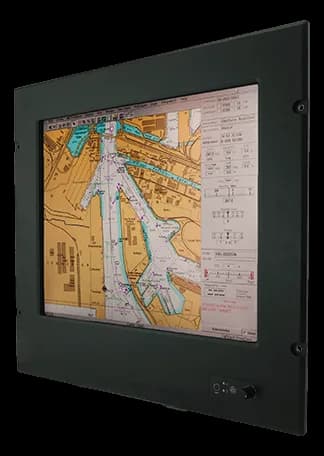

R17ID3S-MRM117" fanless panel PC with an IP66 front for marine and industrial environments
- Manufacturer
R17ID3S-MRM1 is an industrial panel PC with a 17" display designed for control stations in industrial and marine environments, where front IP66 protection and the absence of fans reduce the ingress of dust and liquids.
The aluminum and metal chassis supports panel or VESA mounting. The wide-range 9~36 V DC power input and DNV / IEC 60945 certification define its use on board ships and in installations with a variable power supply.
At a glance
- CPU class: Intel Atom
- CPU generation: Cedar Trail
- Processor: Intel Atom N2600 1.6GHz
- CPU frequency: 1.6 GHz
- Memory: 4GB GB
Technical specifications
| CPU class | Intel Atom |
|---|---|
| CPU generation | Cedar Trail |
| Processor | Intel Atom N2600 1.6GHz |
| Chipset | NM10 |
| CPU frequency | 1.6 GHz |
| Memory | 4GB GB |
|---|
| Storage | 128GB (Default)up to 512GB(optional) |
|---|
| Display size | 17 ″ |
|---|---|
| Touchscreen | Resistive(default) |
| Brightness | Up to 399 standard cd/m² |
| Resolution | 1280x1024 SXGA |
| Contrast ratio | 1000:1 |
| Viewing angle | 85,85,80,80 |
| Active area | 337.92 × 270.336 mm |
| Video outputs | 1× VGA |
| OSD controls | 1 x Power Button, 1 x Reset Button, 1 x The Dimming Knob |
| Ethernet ports | 2× RJ45, 10/100/1000 MbpsBCM57780A1KMLG |
|---|---|
| USB ports | 2× USB 2.0 |
| Serial interfaces | 2 x RS232 or1× RS-232/422/4852× RS-422/485, isolate |
| Other I/O | 1 x Power Button · 1 x Reset Button |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 50 W |
| Mounting | Panel MountVESA Mount |
|---|---|
| Cutout dimensions | 405 × 356 mm |
| Weight | 8 kg |
| Chassis material | alluminio, metallo |
| IP rating | Front IP66 |
|---|---|
| Cooling | Fanless |
| Certifications | FCCCEDNV / IEC 60945 |
|---|
| Operating systems | Windows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
