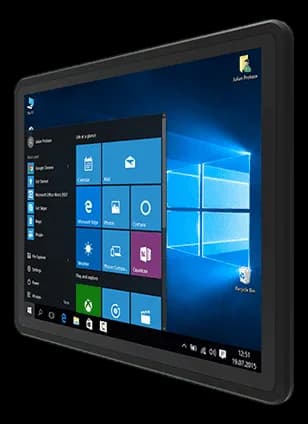

R15ITWS-MHB1-EX15" fanless panel PC certified ATEX/C1D2 with Intel Core i5
- Manufacturer
R15ITWS-MHB1-EX is an industrial panel PC with a 15" display and a capacitive touchscreen, intended for plants and process areas where operation in potentially explosive atmospheres is required. Mounting is to a panel, with a metal chassis.
It carries ATEX/C1D2 and IECEx certifications for use in classified areas, together with CE and FCC. The fanless architecture and the -20 to 60 °C operating temperature range allow use in harsh environments without fans. The power input accepts 9 to 29 V DC.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
- CPU frequency: 2.4–4.2 GHz
- TPM: TPM 2.0
- Memory: 4GB (Default) GB
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| CPU frequency | 2.4–4.2 GHz |
| TPM | TPM 2.0 |
| Memory | 4GB (Default) GB |
|---|
| Storage | 1× M.2 2280 NVMe SSD, 128GB up to 512GB (Default)1× 2.5" Removable 256GB SSD up to 512GB(optional · M.2)1× 2.5" Removable 256GB SSD up to 512GB(optional · SSD/HDD) |
|---|
| Display size | 15 ″ |
|---|---|
| Touchscreen | PCAP |
| Brightness | Up to 399 standard cd/m² |
| Resolution | 1024x768 XGA |
| Contrast ratio | 2000:1 |
| Viewing angle | 88,88,88,88 |
| Active area | 304.1 × 228.1 mm |
| Video outputs | 1× HDMI 2.0 (opzionale)(optional) |
| OSD controls | Button 1 x Power Button with LED Indicator 1 x Reset Button |
| Ethernet ports | 2× GbE (RJ45) |
|---|---|
| USB ports | 4× USB 3.2 Gen 1 (Type-A) |
| Serial interfaces | 2× RS-232/422/485 (default RS-232)1× RS-232 |
| Audio | 1× audio combo (mic-in/line-out) |
| Other I/O | 1 x Reset Button |
| Expansion | 1× mPCIe, 1× PCIe x16 (segnale x4, modulo max 180×121 mm), 1× M.2 E-Key 2230 (WiFi), 1× M.2 M-Key 2280 (NVM)1× mPCIe, 1× PCIe x16 (segnale x4, modulo max 180×121 mm)(Mini-PCIe) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–29 V |
| Power consumption | 45–55 W |
| PSU power | 120 W |
| Mounting | Panel MountVESA Mount(optional) |
|---|---|
| Dimensions | 367 × 291 × 91 mm |
| Cutout dimensions | 342 × 261 mm |
| Weight | 6.6 kg |
| Chassis material | metallo |
| Operating temperature | -20–60 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -20–60 °C |
| Certifications | CEIECEx exFCCATEX/C1D2 |
|---|
| Operating systems | Windows 11 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
