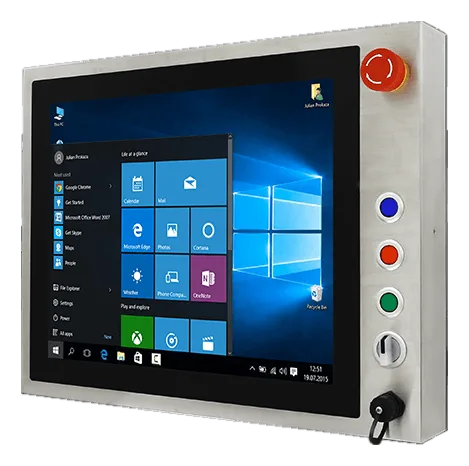

R15IB3S-SPC315" fanless panel PC with stainless steel chassis and front IP65 rating
- Manufacturer
R15IB3S-SPC3 is a 15" industrial panel PC with a capacitive (PCAP) touchscreen, designed for installation in production environments and machine HMIs. VESA mounting and DC power allow it to be integrated in a cabinet or on arms.
The stainless steel chassis combined with the front IP65 rating makes it suitable for environments with dust and liquids. Fanless operation removes the fans and their openings, in keeping with use in harsh areas. The display offers a brightness of 300 cd/m² and a contrast ratio of 2000:1. It runs Windows 10 IoT and Linux.
At a glance
- CPU class: Intel Celeron/Pentium
- Processor: Intel Celeron N2930 1.83GHz (up to 2.16GHz)
- CPU frequency: 1.83–2.16 GHz
- Memory: 4GB(Default) (Default) GB
- Display size: 15 ″
Technical specifications
| CPU class | Intel Celeron/Pentium |
|---|---|
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| CPU frequency | 1.83–2.16 GHz |
| Memory | 4GB(Default) (Default) GB8GB GB(optional) |
|---|
| Storage | 128GB SSD(Default) (Default) 256GB SSD (Optional) 512GB SSD (Optional)(SSD/HDD)256GB SSD(optional · SSD/HDD)512GB SSD(optional · SSD/HDD) |
|---|
| Display size | 15 ″ |
|---|---|
| Touchscreen | PCAP |
| Brightness | Up to 399 standard cd/m² |
| Resolution | 1024x768 XGA |
| Contrast ratio | 2000:1 |
| Viewing angle | 88,88,88,88 |
| Active area | 304.1 × 228.1 mm |
| OSD controls | Button Rear side: 1 x Power Button 1 x Reset Button Front side: 1 x Emergency Button & 3 x Flat Button for CN1 & CN2 M12 connector 1 x Rotary Switch for touch mode |
| Ethernet ports | 1× GbE (RJ45), waterproof2× Intel Ethernet Controller |
|---|---|
| USB ports | 2× USB 2.01× USB 2.0 (Type-A), frontale waterproof1 x M12 waterproof connector for |
| Serial interfaces | 1× RS-232 (M12), waterproof |
| Other I/O | 1 x Power Button · 1 x Reset Button, Front side: · 1 x Emergency Button & · 3 x Flat Button for CN1 & CN2 M12 connector · 1 x Rotary Switch for touch mode |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Mounting | VESA Mount |
|---|---|
| Chassis material | acciaio inox |
| IP rating | Full IP65 |
|---|---|
| Cooling | Fanless |
| Storage temperature | -20–60 °C |
| Certifications | FCCCE |
|---|
| Operating systems | LinuxWindows 10 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
