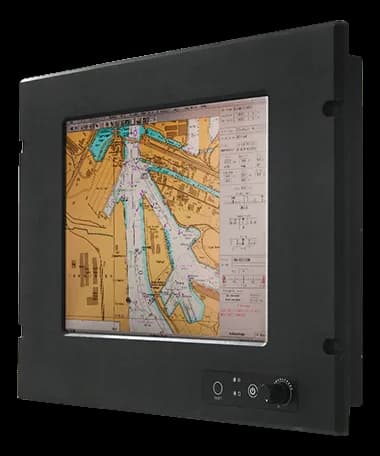

R10ID3S-MRM210.4" fanless panel PC with an IP66-rated front and a 600 cd/m² display
- Manufacturer
R10ID3S-MRM2 is a 10.4" industrial panel PC based on an Intel Atom N2600 and intended for use in harsh environments, where the aluminum and metal chassis and the absence of fans reduce maintenance points.
The front with IP66 protection rating and the DNV/IEC 60945 certification qualify it for marine and naval applications. The 600 cd/m² display supports reading under strong lighting, while the wide-range 9~36 V DC power input allows integration in mobile and industrial installations.
At a glance
- CPU class: Intel Atom
- CPU generation: Cedar Trail
- Processor: Intel Atom N2600 1.6GHz
- CPU frequency: 1.6 GHz
- Memory: 4GB GB
Technical specifications
| CPU class | Intel Atom |
|---|---|
| CPU generation | Cedar Trail |
| Processor | Intel Atom N2600 1.6GHz |
| Chipset | NM10 |
| CPU frequency | 1.6 GHz |
| Memory | 4GB GB |
|---|
| Storage | 128GB (Default)up to 512GB(optional) |
|---|
| Display size | 10.4 ″ |
|---|---|
| Touchscreen | Resistive(default) |
| Brightness | 600-999 outdoor cd/m² |
| Resolution | 800x600 SVGA |
| Contrast ratio | 400:1 |
| Viewing angle | 70,70,70,60 |
| Active area | 211.2 × 158.4 mm |
| Video outputs | 1× VGA |
| OSD controls | 1 x Power Button, 1 x Reset Button, 1 x The Dimming Knob |
| Ethernet ports | BCM57780A1KMLG2× RJ45, 10/100/1000 Mbps |
|---|---|
| USB ports | 2× USB 2.0 |
| Serial interfaces | 1× RS-232/422/4852 x RS232 or2× RS-422/485, isolate |
| Other I/O | 1 x Power Button · 1 x Reset Button |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 30 W |
| Mounting | Panel MountVESA Mount |
|---|---|
| Dimensions | 339 × 256 × 72 mm |
| Cutout dimensions | 300 × 232 mm |
| Weight | 4 kg |
| Chassis material | alluminio, metallo |
| IP rating | Front IP66 |
|---|---|
| Cooling | Fanless |
| Certifications | FCCCEDNV / IEC 60945 |
|---|
| Operating systems | Windows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
