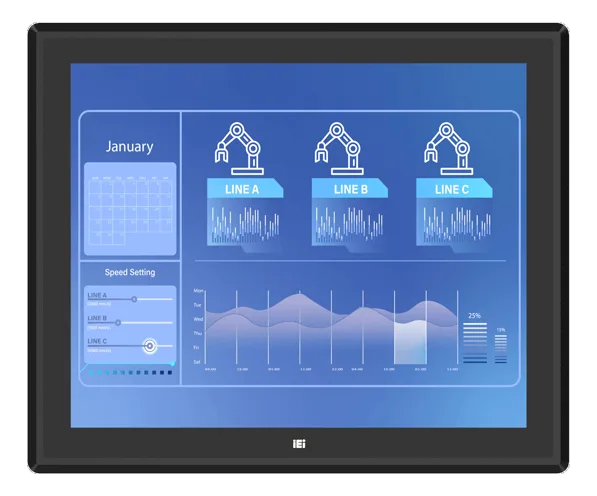

PPC2-C19-EHL19" fanless industrial panel PC with PCAP touch and an IP65-rated front
- Manufacturer
- Configurations
- 2 available configurations
PPC2-C19-EHL is a 19" industrial panel PC with a capacitive (PCAP) touchscreen, for production environments, machine control and line-side HMI. The aluminum and metal chassis and the IP65-rated front suit installations exposed to dust and liquids, with panel, rack, wall, VESA or desktop mounting.
Fanless construction removes fans and reduces maintenance points, while the -10~60 °C operating temperature range extends use in thermally harsh contexts. The 12~24 V DC power input eases integration into cabinets and low-voltage systems.
The PPC2-C19-EHL family has 2 configurations sharing a 19" display, PCAP touch, LPDDR4x RAM and 12~24 V DC power; example part number PPC2-C19-EHL-J1/8G-R10.
At a glance
- CPU class: Intel Celeron/Pentium
- Processor: Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10W
- CPU frequency: 2.6 GHz
- CPU TDP: 10 W
- RAM type: LPDDR4x
Technical specifications
| CPU class | Intel Celeron/Pentium |
|---|---|
| Processor | Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10W |
| CPU frequency | 2.6 GHz |
| CPU TDP | 10 W |
| Watchdog | Yes(sec · 1-255) |
| Memory | on-board dual-channel LPDDR4× 8GB GB(LPDDR4x) |
|---|---|
| RAM type | LPDDR4x |
| Maximum RAM | 16 GB |
| Storage | 1× M.2 2280 M-key (PCIe Gen3 x2)(M.2-M)1× 2.5” HDD/SSD drive bay(2.5-SATA) |
|---|
| Display size | 19 ″ |
|---|---|
| Touchscreen | PCAP |
| Brightness | Up to 399 standard cd/m² |
| Resolution | 1280x1024 SXGA |
| Contrast ratio | 1000:1 |
| Viewing angle | 170°/160°178°/178° |
| Pixel pitch | 0.294 x 0.294 mm |
| Display colors | 16.7M |
| Backlight MTBF | 50000 hours h |
| Touch controller | EETI 80 seriesProjected capacitive type: EETI 80 |
| Surface hardness | 7H |
| Video outputs | 1× HDMI1× HDMI (fino a 3840×2160 @30Hz)(3840x2160) |
| Ethernet ports | 2× 2.5GbE LAN via Intel Intel I226-V2 x LAN -2× LAN - LAN1: Intel I225V 2.5GbE + LAN2: Intel I225V 2.5GbE2× RJ-45 GbE |
|---|---|
| USB ports | 2× USB 3.2 Gen2x12× USB 3.2 Gen2x1 (Type-A)4× USB 2.0 |
| Serial interfaces | 1× RS-232/422/485 (DB9)4× RS-232 (DB9) |
| Other I/O | 2 x Power In - 1 x 12V-24V power jack · 1 x Power terminal block (2-pin) |
| Wireless | Wi-FiBluetooth |
|---|
| Expansion | 1× M.2 B-key 2242/2280 (PCIe Gen3 x1 + USB 3.0)1× M.2 M-key 2280 (PCIe Gen3 x2)1× M.2 B-key 2242/2280 (PCIe Gen3 x2 + USB 2.0)1× M.2 A-key 2230 (PCIe gen3 x2 + USB 2.0) <from PPC2-XIO-04-R10> |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 12–24 V |
| Power consumption | 60.61 W |
| Mounting | Desktop / StandRack MountWall MountVESA MountPanel Mount |
|---|---|
| Dimensions | 372.4 × 59.2 × 447.4 mm |
| Cutout dimensions | 430 × 355 mm |
| Weight | 5.745 kg |
| Chassis material | alluminio, metallo |
| Chassis color | Black |
| IP rating | Front IP65 |
|---|---|
| Operating temperature | -10–60 °C |
| Cooling | Fanless |
| Storage temperature | -20–60 °C |
| Certifications | FCCUKCACE |
|---|
| Operating systems | LinuxWindows 10 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| PPC2-C19-EHL-J1/8G-R10 |
| PPC2-C19-EHL-J1/8G-R12 |
