MRP-F172U rack display drawer with two or three 17.3″ screens
- Manufacturer
- Configurations
- 3 available configurations

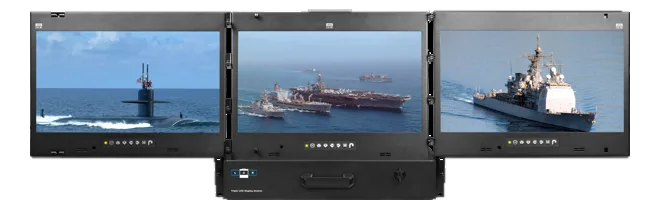

MRP-F17 is a 2U pull-out drawer that brings two or three side-by-side 17.3″ screens into the rack: the three-display configuration is centered, while the two-display ones mount on the left or on the right. There is no keyboard: it suits installations where the controls come from another station and the rack only has to show the picture.
The panel is Full HD 1920×1080 with 300 cd/m² and 1000:1 contrast; inputs are VGA, DVI, HDMI and DisplayPort, with optional broadcast SDI. Power is auto-sensing 100-240 VAC, with DC versions on request. Steel chassis, 550 mm depth, 19.4 kg with two screens and 24.1 kg with three.
At a glance
- Number of displays: 2
- Display size: 17.3
- Resolution: 1920x1080 FHD
- Brightness: Up to 399 standard
- Video inputs: VGA
Technical specifications
| Number of displays | 23 |
|---|---|
| Display size | 17.3 |
| Resolution | 1920x1080 FHD |
| Brightness | Up to 399 standard |
| Video inputs | VGAHDMIDisplayPort(1.2) |
| Touchscreen | PCAPResistive |
| Contrast ratio | 1000:1(typ) |
| Viewing angle | 85/85/85/85 |
| Refresh rate | 60 |
| Response time | 25 |
| Pixel pitch | 0.1989 mm |
| Active area | 381.888 × 214.812 mm |
| Display colors | 16.7 M, 8-bit |
| Backlight type | LED |
| Surface treatment | Hard-coatingAnti-glare (AG) |
| Surface hardness | 3H |
| Touch points | Single(resistive)10 point touch standard(pcap) |
| Audio | Built-in dual stereo speaker (per display) |
|---|
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V |
| Power consumption | 14 W2(per panel · saving)1(per panel · off) |
| Rack units | 2 U |
|---|---|
| Dimensions | 441.6 × 88 × 550 |
| Weight | 24.129.3(gross)24.2(gross) |
| Chassis material | acciaio |
| Operating temperature | 0–55 |
|---|---|
| Storage temperature | -20–60 |
| Operating altitude | 4876.8 |
| MTBF | 15000 h |
| Certifications | CEFCCWEEE (2012/19/UE)REACHUKCARoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
Columns show only what changes between configurations: the rest of the sheet applies to the whole family.
| Configuration (PN) | Number of displays |
|---|---|
| MRP-F17-2L | 2 |
| MRP-F17-2R | 2 |
| MRP-F17-3 | 3 |
