MRK-F172U rack console with two or three 17.3″ screens and integrated keyboard
- Manufacturer
- Configurations
- 6 available configurations

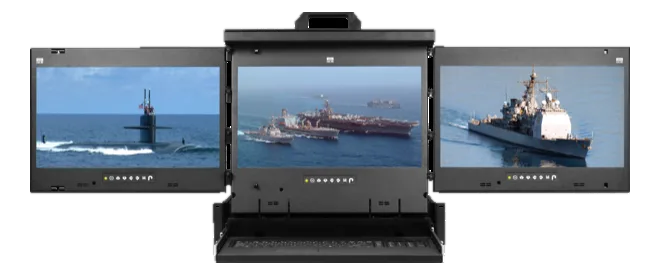

MRK-F17 is a 2U pull-out drawer that brings two or three side-by-side 17.3″ screens into the rack: the three-display configuration is centered, while the two-display ones mount on the left or on the right. Below the screens sits a 104-key keyboard with touchpad or trackball, so the service station is complete without adding peripherals.
The panel is Full HD 1920×1080 with 300 cd/m² and 1000:1 contrast; inputs are VGA, DVI, HDMI and DisplayPort, with optional broadcast SDI. Power is auto-sensing 100-240 VAC, with DC versions on request. Steel chassis, 550 mm depth, 21 kg with two screens and 25.7 kg with three.
At a glance
- Number of displays: 3
- Display size: 17.3 ″
- Resolution: 1920x1080 FHD
- Brightness: Up to 399 standard cd/m²
- Video inputs: VGA
Technical specifications
| Number of displays | 32 |
|---|---|
| Display size | 17.3 ″ |
| Resolution | 1920x1080 FHD |
| Brightness | Up to 399 standard cd/m² |
| Video inputs | VGADVIDisplayPort(1.2)HDMI(1.4)SDI(optional) |
| Touchscreen | PCAPResistive |
| Contrast ratio | 1000:1(typ) |
| Viewing angle | 85/85/85/85 |
| Refresh rate | 60 |
| Response time | 25 |
| Pixel pitch | 0.1989 mm |
| Active area | 381.888 × 214.812 mm |
| Display colors | 16.7 M, 8-bit |
| Backlight type | LED |
| Surface treatment | Anti-glare (AG)Hard-coating |
| Surface hardness | 3H |
| Touch points | 10 point touch standard(pcap)Single(resistive) |
| Keyboard & pointing device | 104-key keyboard with either touchpad or trackball (PS2 / USB)(touchpad/trackball) |
|---|---|
| Audio | Built-in dual stereo speaker (per display)SMPTE 299M / 272M-C(SDI) |
| AC/DC input | AC |
|---|---|
| Power input | 100–240 V18–36 V(optional)66–160 V(optional)9–18 V(optional)180–425 V(optional)36–75 V(optional) |
| Power consumption | 14 W1 W(off)2 W(saving) |
| Rack units | 2 |
|---|---|
| Dimensions | 441.6 × 88 × 550 |
| Weight | 25.72131.1(gross)26(gross) |
| Chassis material | acciaio |
| Operating temperature | 0–55 °C |
|---|---|
| Storage temperature | -20–60 °C |
| Operating altitude | 4876.8 m |
| MTBF | 15000 h |
| Certifications | WEEE (2012/19/UE)REACHCEUKCAFCCRoHS(3) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
Columns show only what changes between configurations: the rest of the sheet applies to the whole family.
| Configuration (PN) | Number of displays |
|---|---|
| MRK-F17-2Lb_EU | 2 |
| MRK-F17-2Le_EU | 2 |
| MRK-F17-2Rb_EU | 2 |
| MRK-F17-2Re_EU | 2 |
| MRK-F17-3b_EU | 3 |
| MRK-F17-3e_EU | 3 |
