IMCOMModular 19″ console with 14U base unit and inclined upper section

Manufacturer

IMCOM is the console system for control rooms and supervision workstations, where rack equipment and operators share the same cabinet.

The base unit has a 14U lower section and an inclined upper section with usable heights of 12U, 16U, 18U and 21U, in two depths, that can be placed side by side to form work islands. The 19″ uprights are adjustable both at the front and at the back, and in the upper area they are inclined, to improve the viewing angle of monitors and display equipment. An additional upper section adds a further 10U; the tops are customized with holes and cable pass-through areas.

Request information Full specifications ↓

Technical data

Features

Configurable as a single module or in multiple-module configuration
Possibility to expand the system at any time
Possibility of a wide variety of solutions
Modules supplied already assembled
Adjustable 19" uprights
Hinged rear and front doors
Cable access through the sides and the base
Installation of monitors up to 21"
Combinations with angles of 30°, 45° and 90°
Laminate top with radiused edge
Leveling feet
Wide range of accessories

Finishes

Standard colours. Other RAL finishes on request from our engineering team.

RAL 7035Light grey

Technical specifications

Dimensions	L 600 mm · P 600 / 800 mm

Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.

Configurations

How this series can be ordered: the versions built so far, each with what sets it apart.

IMCOM PRIMARY
Versione standard · Modulo singolo
IMCOM

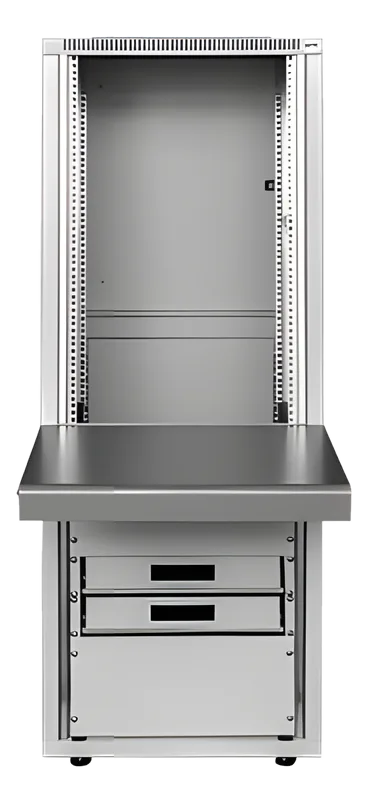

Versione configurata · Modulo singolo con cassetti frontali
IMCOM
Versione configurata · Modulo singolo con ruote
IMCOM
Versione standard · Piano di lavoro
IMCOM
Versione configurata · Gruppo consolle con resilienti e stabilizzatori
IMCOM
Versione configurata · Gruppo consolle con angoli 30°
IMCOM
Versione configurata · Allestimento custom per sala di controllo

Documentation

DatasheetPDF · 231 KB

Cabinet part numbers

The sizes in this series: same cabinet, different height, depth and door. Sorted by rack units, then by code.

Part number	Description	Rack units	Dimensions
C1140-01	Modular console, 600 × 600 mm, height 1301 mm, adjustable 19″ uprights	14 U	600 × 1301 × 600
C1140-02	Modular console, 600 × 600 mm, height 1476 mm, adjustable 19″ uprights	14 U	600 × 1476 × 600
C1140-03	Modular console, 600 × 600 mm, height 1563 mm, adjustable 19″ uprights	14 U	600 × 1563 × 600
C1140-04	Modular console, 600 × 600 mm, height 1695 mm, adjustable 19″ uprights	14 U	600 × 1695 × 600
C1140-11	Modular console, 600 × 800 mm, height 1301 mm, adjustable 19″ uprights	14 U	600 × 1301 × 800
C1140-12	Modular console, 600 × 800 mm, height 1476 mm, adjustable 19″ uprights	14 U	600 × 1476 × 800
C1140-13	Modular console, 600 × 800 mm, height 1563 mm, adjustable 19″ uprights	14 U	600 × 1563 × 800
C1140-14	Modular console, 600 × 800 mm, height 1695 mm, adjustable 19″ uprights	14 U	600 × 1695 × 800
C1200-01	30° angle for 12U/600 console	—	—
C1200-02	30° angle for 16U/600 console	—	—
C1200-03	30° angle for 18U/600 console	—	—
C1200-04	30° angle for 21U/600 console	—	—
C1200-11	30° angle for 12U/800 console	—	—
C1200-12	30° angle for 16U/800 console	—	—
C1200-13	30° angle for 18U/800 console	—	—
C1200-14	30° angle for 21U/800 console	—	—
C1210-01	45° angle for 12U/600 console	—	—
C1210-02	45° angle for 16U/600 console	—	—
C1210-03	45° angle for 18U/600 console	—	—
C1210-04	45° angle for 21U/600 console	—	—
C1210-11	45° angle for 12U/800 console	—	—
C1210-12	45° angle for 16U/800 console	—	—
C1210-13	45° angle for 18U/800 console	—	—
C1210-14	45° angle for 21U/800 console	—	—

Accessories

The codes that fit this series. An accessory can be compatible with several series: it appears under each of them. Sorted by code.

Photo	Part number	Description
	003-200-00002	APW catalog item in the 19″ Rack Cabinets category
	003-200-00003	APW item in the 19″ Rack Cabinets category, with derived configurations
	003-200-00004	19″ Aluminum rack socket strip, 9 UNEL BIPASSO outlets, 16A, 2 m cable, Schuko plug
	C12ALMST-MT2S	APW catalog item in the 19″ Rack Cabinets category
	C16ALMST-IL2S	APW item in the 19″ Rack Cabinets category, with two configurations
	C1133-01	Bottom panel, 600 mm depth
	C1133-02	Bottom panel, 800 mm depth
	C1135-01	Leveling feet assembly, single
	C1135-30	Leveling feet assembly, 30°
	C1135-45	Leveling feet assembly, 45°
	C1138-01	Single laminate console
	C1138-02	Double laminate console
	C1138-03	Triple laminate console
	C1138-04	Quadruple laminate console
	C1138-11	Single laminate printer desk/600
	C1138-12	Double laminate printer desk/600
	C1138-21	Single laminate printer desk/800
	C1138-22	Double laminate printer desk/800
	C1160	Fan unit
	C1178	Side cover kit
	C1180-01	Printer desk assembly, 600 mm depth
	C1180-02	Printer desk assembly, 800 mm depth
	C1185-01	L-shaped printer desk assembly, 600 mm
	C1185-02	L-shaped printer desk assembly, 800 mm
	C1190-01	Overhead 10U for 12U console 600×600
	C1190-02	Overhead 10U for 16U console 600×600
	C1190-03	Overhead 10U for 18U console 600×600
	C1190-04	Overhead 10U for 21U console 600×600
	C1190-11	Overhead 10U for 12U console 600×800
	C1190-12	Overhead 10U for 16U console 600×800
	C1190-13	Overhead 10U for 18U console 600×800
	C1190-14	Overhead 10U for 21U console 600×800
	C1195-01	Overhead slop 10U console 12U 600×600
	C1195-02	Overhead slop 10U console 16U 600×600
	C1195-03	Overhead slop 10U console 18U 600×600
	C1195-04	Overhead slop 10U console 21U 600×600
	C1195-11	Overhead slop 10U console 12U 600×800
	C1195-12	Overhead slop 10U console 16U 600×800
	C1195-13	Overhead slop 10U console 18U 600×800
	C1195-14	Overhead slop 10U console 21U 600×800
	C1201-01	30° angle for printer desk, 600 mm depth
	C1201-02	30° angle for printer desk, 800 mm depth
	C1203-01	30° angle for overhead 12U/600
	C1203-02	30° angle for overhead 16U/600
	C1203-03	30° angle for overhead 18U/600
	C1203-04	30° angle for overhead 21U/600
	C1203-11	30° angle for overhead 12U/800
	C1203-12	30° angle for overhead 16U/800
	C1203-13	30° angle for overhead 18U/800
	C1203-14	30° angle for overhead 21U/800
	C1204-01	30° angle for overhead slop 12U/600
	C1204-02	30° angle for overhead slop 16U/600
	C1204-03	30° angle for overhead slop 18U/600
	C1204-04	30° angle for overhead slop 21U/600
	C1204-11	30° angle for overhead slop 12U/800
	C1204-12	30° angle for overhead slop 16U/800
	C1204-13	30° angle for overhead slop 18U/800
	C1204-14	30° angle for overhead slop 21U/800
	C1211-01	45° angle for printer desk, 600 mm depth
	C1211-02	45° angle for printer desk, 800 mm depth
	C1213-01	45° angle for overhead 12U/600
	C1213-02	45° angle for overhead 16U/600
	C1213-03	45° angle for overhead 18U/600
	C1213-04	45° angle for overhead 21U/600
	C1213-11	45° angle for overhead 12U/800
	C1213-12	45° angle for overhead 16U/800
	C1213-13	45° angle for overhead 18U/800
	C1213-14	45° angle for overhead 21U/800
	C1214-01	45° angle for overhead slop 12U/600
	C1214-02	45° angle for overhead slop 16U/600
	C1214-03	45° angle for overhead slop 18U/600
	C1214-04	45° angle for overhead slop 21U/600
	C1214-11	45° angle for overhead slop 12U/800
	C1214-12	45° angle for overhead slop 16U/800
	C1214-13	45° angle for overhead slop 18U/800
	C1214-14	45° angle for overhead slop 21U/800
	C1240-01	Radial laminate with drawer
	C1240-02	Double laminate with drawers
	C1243-12	Upper upright max width 12U
	C1243-14	Lower upright max width 14U
	C1243-16	Upper upright max width 16U
	C1243-18	Upper upright max width 18U
	C1243-21	Upper upright max width 21U
	C1335-01	Fixed shelf 19″/600
	C1335-02	Fixed shelf 19″/800
	C1335-11	Fixed shelf max width/600
	C1335-12	Fixed shelf max width/800
	C3094	Console grounding kit
	C3095	Overhead grounding kit
	VK385-776190	M6 wing nuts kit, 50 pcs
	VK385-776191	M6×12 mm screws and washers kit, 50 pcs
	VK593-599790	19″ cantilever shelf kit, 255 mm
	VK593-599791	19″ cantilever shelf kit, 400 mm
	VT555-500515	Copper ground bar kit, 1U 19″, with insulators
