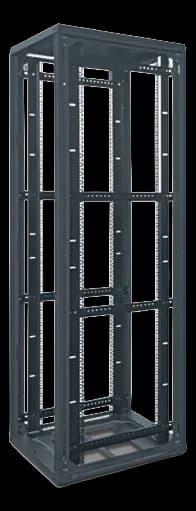

Telaio open frame nero per rack 19 pollici con montanti forati verticali

IMAGE Open Frame19″ open frame chassis, versatile, static load capacity 500 Kg

Manufacturer

IMAGE Open Frame is the open frame chassis for cabling rooms and technical rooms, where access to equipment matters more than cabinet closure and the rack needs to be moved or reconfigured often.

The structure consists of two frame assemblies and two steel sheet covers, for a maximum static load capacity of 500 Kg uniformly distributed. The 19″ uprights are fixed by side crossbars, which allow depth-adjustable positioning, and fit most commercially available equipment. The frame has height-adjustable feet and can be equipped with wheels, including braked versions.

Request information Full specifications ↓

Technical data

Features

Self-supporting frame
Structure composed of 2 frame assemblies and 2 covers
Static load capacity up to 500 Kg uniformly distributed
Front and rear 19" rack uprights, full-length and compliant with IEC60297
Front and rear 19" side reducers (rack width
Open bottom for convenient passage
Height-adjustable feet
Optional wheels with 80 Kg or 115 Kg load capacity
"Additional bay" versions designed for coupling
Provision for mounting a complete grounding set in compliance with EN60950 standard

Finishes

Standard colours. Other RAL finishes on request from our engineering team.

RAL 7016Anthracite grey

Technical specifications

Rack units	36 U43 U47 U
Dimensions	L 600 / 800 mm · P 600 / 800 mm
Chassis material	acciaio
Mounting	Open Frame

Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.

Configurations

How this series can be ordered: the versions built so far, each with what sets it apart.

IMAGE® Open Frame PRIMARY
Versione standard · Vista frontale
IMAGE® Open Frame PRIMARY
Versione standard · Vista laterale
IMAGE® Open Frame
Versione configurata con ruote e golfari · VT386-100078
IMAGE® Open Frame
Versione configurata con ruote e golfari · VT386-100079

Documentation

DatasheetPDF · 247 KB

Cabinet part numbers

The sizes in this series: same cabinet, different height, depth and door. Sorted by rack units, then by code.

Part number	Description	Rack units	Dimensions
VT385-776482	Image Open Frame	36 U	600 x 600 mm (L x P)
VT385-776485	Image Open Frame	36 U	600 x 800 mm (L x P)
VT385-776488	Image Open Frame	36 U	800 x 600 mm (L x P)
VT385-776491	Image Open Frame	36 U	800 x 800 mm (L x P)
VT385-776483	Image Open Frame	43 U	600 x 600 mm (L x P)
VT385-776486	Image Open Frame	43 U	600 x 800 mm (L x P)
VT385-776489	Image Open Frame	43 U	800 x 600 mm (L x P)
VT385-776492	Image Open Frame	43 U	800 x 800 mm (L x P)
VT385-776484	Image Open Frame	47 U	600 x 600 mm (L x P)
VT385-776487	Image Open Frame	47 U	600 x 800 mm (L x P)
VT385-776490	Image Open Frame	47 U	800 x 600 mm (L x P)
VT385-776493	Image Open Frame	47 U	800 x 800 mm (L x P)

Accessories

The codes that fit this series. An accessory can be compatible with several series: it appears under each of them. Sorted by code.

Photo	Part number	Description
	003-200-00002	APW catalog item in the 19″ Rack Cabinets category
	003-200-00003	APW item in the 19″ Rack Cabinets category, with derived configurations
	003-200-00004	19″ Aluminum rack socket strip, 9 UNEL BIPASSO outlets, 16A, 2 m cable, Schuko plug
	C12ALMST-MT2S	APW catalog item in the 19″ Rack Cabinets category
	C16ALMST-IL2S	APW item in the 19″ Rack Cabinets category, with two configurations
	VA385-775228	Unit identification strips from 1U to 48U
	VA385-776542	Reverse unit identification strip from 48U to 1U
	VA584-000571	Kit of 100 pcs. Quickfix 1U panel – RAL 7016 plastic
	VA802-562180	Power cable 1.5 m unterminated with Schuko plug
	VA803-561559	Power cable 2 m unterminated with BS1363/A 13A plug
	VK385-775383	Kit of 2 19″ uprights, 27U
	VK385-775384	Kit of 2 19″ uprights, 36U
	VK385-775385	Kit of 2 19″ uprights, 43U
	VK385-775505	Plinth kit 100 mm 600×600
	VK385-775506	Plinth kit 100 mm 600×800/800×600
	VK385-775508	Plinth kit 100 mm 800×800
	VK385-775525	Kit of 2 19″ uprights + reduction, 27U (L 800 mm)
	VK385-775526	Kit of 2 19″ uprights + reduction, 36U (L 800 mm)
	VK385-775527	Kit of 2 19″ uprights + reduction, 43U (L 800 mm)
	VK385-775545	Coupling kit
	VK385-775653	Kit of 4 leveling feet
	VK385-775709	Sliding keyboard shelf, 19″
	VK385-775713	Metal cable duct kit, 27U (180 mm W)
	VK385-775714	Metal cable duct kit, 36U (180 mm W)
	VK385-775715	Metal cable duct kit, 42U/43U (180 mm W)
	VK385-775721	Kit of 2 casters with brake – 80 Kg static load
	VK385-775722	Kit of 2 casters without brake – 80 Kg static load
	VK385-775723	Kit of metal double rings for cable support (10 pcs)
	VK385-775730	Fixed shelf kit, 470 mm (cabinet depth 600/800)
	VK385-775732	Fixed shelf kit, 670 mm (cabinet depth 800)
	VK385-775755	Kit of 2 19″ uprights, 47U
	VK385-775757	Kit of 2 19″ uprights + reduction, 47U (L 800 mm)
	VK385-775850	Metal cable duct kit, 47U (180 mm W)
	VK385-775863	Anti-tilt base for casters, 600 mm width
	VK385-775864	Anti-tilt base for casters, 800 mm width
	VK385-775905	1U 19″ solid panel kit, black (RAL 9005)
	VK385-775906	2U 19″ solid panel kit, black (RAL 9005)
	VK385-775907	3U 19″ solid panel kit, black (RAL 9005)
	VK385-775908	4U 19″ solid panel kit, black (RAL 9005)
	VK385-775909	5U 19″ solid panel kit, black (RAL 9005)
	VK385-775933	Vented plinth kit 100 mm 600×600
	VK385-775934	Vented plinth kit 100 mm 600×800/800×600
	VK385-775935	Vented plinth kit 100 mm 800×800
	VK385-775952	470 mm support rail kit (600/800 mm deep cabinet), RAL 9005
	VK385-775953	670 mm support rail kit (800 mm deep cabinet), RAL 9005
	VK385-776190	M6 wing nuts kit, 50 pcs
	VK385-776191	M6×12 mm screws and washers kit, 50 pcs
	VK385-776192	370 mm fixed shelf kit (600/800 mm deep cabinet)
	VK385-776194	570 mm fixed shelf kit (800 mm deep cabinet)
	VK385-776196	1U panel kit with metal hooks
	VK385-776214	Anti-tilt base for leveling feet, 600 mm width
	VK385-776216	Anti-tilt base for leveling feet, 800 mm width
	VK385-776229	1U panel kit with plastic hooks
	VK385-776232	Plastic single ring kit for cable support (10 pcs)
	VK385-776250	2-caster kit with brake, 115 Kg static load
	VK385-776251	2-caster kit without brake, 115 Kg static load
	VK385-776252	570 mm support rail kit (800/1000 mm deep cabinet), RAL 9005
	VK385-776268	370 mm support rail kit (600/800 mm deep cabinet), RAL 9005
	VK385-776414	1U panel with brush strip, black
	VK385-776415	2U cable support panel, black
	VK385-776416	19″ cable support bar, black
	VK385-776498	Plinth kit for leveling feet and casters 600×600
	VK385-776499	Plinth kit for leveling feet and casters 600×800
	VK385-776501	Plinth kit for leveling feet and casters 800×600
	VK385-776502	Plinth kit for leveling feet and casters 800×800
	VK593-599790	19″ cantilever shelf kit, 255 mm
	VK593-599791	19″ cantilever shelf kit, 400 mm
	VT385-776187	Lifting eyebolt kit
	VT385-776368	19″ x 425 mm sliding shelf kit, RAL 9005 (600/800 mm depth)
	VT385-776369	19″ x 625 mm sliding shelf kit, RAL 9005 (800 mm depth)
	VT385-776504	Floor-mount bracket kit, 600 mm width
	VT385-776505	Floor-mount bracket kit, 800 mm width
	VT390-784799	Pull-out drawer kit, 19″ 2U, RAL 9005
	VT390-787528	Support rail kit, 570 mm (800/1000 mm deep cabinet), galvanized
	VT390-787537	Support rail kit, 670 mm (800 mm deep cabinet), galvanized
	VT390-787644	DIN rail enclosure panel kit, 19″, RAL 9005
	VT390-787965	Support rail kit, 370 mm (600/800 mm deep cabinet), galvanized
	VT390-787966	Support rail kit, 470 mm (600/800 mm deep cabinet), galvanized
	VT390-787968	Support bracket kit, 42U, for vertical PDU, mounting hardware included
	VT390-787969	Support bracket kit, 47U, for vertical PDU, mounting hardware included
	VT390-788074	Pull-out drawer kit, 19″ 2U, RAL 9005, top-enclosed – recessed handle
	VT390-788074_7035	Pullout drawer kit 19″ 2U RAL 7035, closed top, recessed handle
	VT390-788091_7035	Pull-out drawer kit, 19″ 3U, RAL 7035, top-enclosed – recessed handle
	VT390-788091_9005	Pull-out drawer kit, 19″ 3U, RAL 9005, top-enclosed – recessed handle
	VT555-501531	Vented panel kit, 1U 19″, black (RAL 9005)
	VT555-501532	Vented panel kit, 2U 19″, black (RAL 9005)
	VT584-000252	Cantilever cable management support, horizontal
	VT584-000366	Adjustable-depth fixed shelf kit (550 mm to 900 mm)
	VT584-000537	2U 19″ equipment security enclosure, 600 mm
	VT593-599469	Blue cable entry slot trim kit, 125 mm (10 pcs)
	VT593-599470	Cable support kit, 125 mm (10 pcs)
	VT802-552929	Ground bar, 13U, for cabinets
	VT802-552930	Ground bar, 27U, for cabinets
	VT802-552931	Ground bar, 39U, for cabinets
	VT802-556088	Distribution bar kit for cabinets
