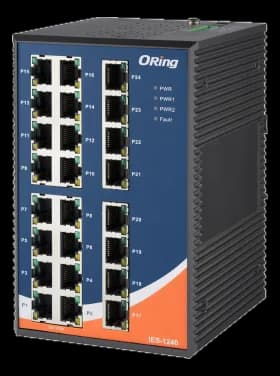

IES-1240Unmanaged switch with 24 Fast Ethernet ports
- Manufacturer
IES-1240 is an unmanaged Ethernet switch with 24 ports at 10/100, designed for industrial networks on DIN rail, where the installation calls for Fast Ethernet connectivity in environments with wide temperature swings.
The power supply accepts a range from 12 to 48 V on a redundant input and includes protection against overload/overcurrent (OCP) and reverse polarity. The store-and-forward fabric handles an 8192-address MAC table with 4 priority queues and a 4.8 Gbps switching bandwidth.
At a glance
- Management: Unmanaged
- Copper port speed: 10/100 Fast
- Switching bandwidth: 4.8 Gbps
- MAC table: 8192 address
- Power input: 12–48 V
Technical specifications
| Copper ports (RJ45/M12) | 24 |
|---|
| Management | Unmanaged |
|---|---|
| Copper port speed | 10/100 Fast |
| Ethernet standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Forwarding mode | Store-and-forward |
| Switching bandwidth | 4.8 Gbps |
| Switching latency | 9 us |
| MAC table | 8192 address |
| Priority queues | 4 queue |
| Power input | 12–48 V |
|---|---|
| Redundant input | Yes |
| Power consumption | 9.6 W |
| Alarm relay | Yes(1A@24VDC) |
| Mounting | DIN Rail Mount |
|---|---|
| Dimensions | 96.4 × 154 × 108.5 mm |
| Weight | 1.052 kg |
| Operating temperature | -40–70 °C |
|---|---|
| IP rating | IP30 |
| Storage temperature | -40–85 °C |
| Manufacturer warranty | 5 year |
| EMC (emission/immunity) | IEC 61000-4-8 PFMFFCC Part 15BIEC 61000-4-3 RSIEC 61000-4-4 EFTIEC 61000-4-5 SurgeIEC 61000-4-6 CSIEC 61000-4-2 ESD |
|---|---|
| Electrical safety | EN 60950-1 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
