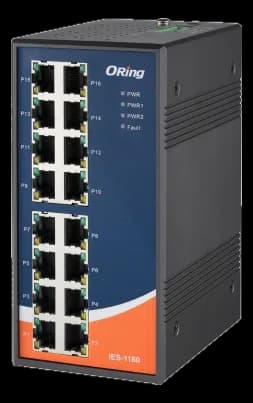

IES-1160Unmanaged 16-port Fast Ethernet switch for industrial DIN-rail
- Manufacturer
IES-1160 is an unmanaged Ethernet switch with 16 Fast 10/100 copper ports, intended for network cabling in industrial settings on DIN-rail installations. The store-and-forward forwarding mode handles an 8192-address MAC table with 4 priority queues.
The power input accepts a 12~48 V range with a redundant input and includes protections against overload/overcurrent (OCP) and reverse polarity. EMC compliance covers the IEC 61000-4 series immunity tests (ESD, RS, EFT, Surge, CS, PFMF) as well as CISPR 32 and EN 55032/55035.
At a glance
- Management: Unmanaged
- Copper port speed: 10/100 Fast
- Switching bandwidth: 3.2 Gbps
- MAC table: 8192 address
- Power input: 12–48 V
Technical specifications
| Copper ports (RJ45/M12) | 16 |
|---|
| Management | Unmanaged |
|---|---|
| Copper port speed | 10/100 Fast |
| Ethernet standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Forwarding mode | Store-and-forward |
| Switching bandwidth | 3.2 Gbps |
| Switching latency | 96 us |
| MAC table | 8192 address |
| Packet buffer | 1 Mbit |
| Priority queues | 4 queue |
| Power input | 12–48 V |
|---|---|
| Redundant input | Yes |
| Power consumption | 15 W |
| Alarm relay | Yes(1A@24VDC) |
| Mounting | DIN Rail Mount |
|---|---|
| Dimensions | 74.3 × 153.6 × 107.5 mm |
| Weight | 1.06 kg |
| Operating temperature | -40–75 °C |
|---|---|
| IP rating | IP30 |
| Storage temperature | -40–85 °C |
| MTBF | 1160204 h |
| Manufacturer warranty | 5 year |
| EMC (emission/immunity) | IEC 61000-4-4 EFTIEC 61000-4-5 SurgeIEC 61000-4-6 CSIEC 61000-4-8 PFMFIEC 61000-4-2 ESDIEC 61000-4-3 RSEN 55032CISPR 32EN 55035FCC Part 15B |
|---|---|
| Electrical safety | EN 60950-1EN 62368-1 |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
