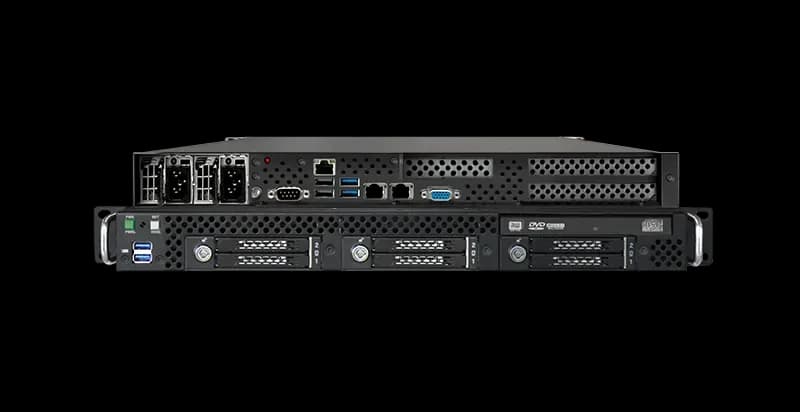

GAP-151R-S7-SOLO1U Rugged Server
- Manufacturer
GAP is a family of rugged servers and workstations with an aluminum construction, designed for applications that require a robust MIL-GRADE certified computing platform, suitable for operations in critical environments. GAP-151R-S7-SOLO rugged servers feature single socket 3rd Gen. Intel® Xeon® (Ice Lake), a balanced architecture that delivers built-in AI acceleration and advanced security capabilities, up to 2TB DDR4-3200 RAM and 64 lane PCIe Gen 4 . GAP S7 SOLO series rugged servers are MIL-STD-810F qualified for temperature and shock, MIL-STD-167-1A for vibrations and can optionally conform to MIL-STD-461 for EMI/EMC.
At a glance
- Single Socket
- 510mm Depth
- Rear I/O
- Rear PSU
A GOMA ELETTRONICA division
A GOMA RUGGED SOLUTIONS product
The GAP series belongs to GOMA RUGGED SOLUTIONS, GOMA's division for MIL-STD qualified systems. The full datasheet for this model, with configurations and qualifications, lives on its own site.
Visit GOMA RUGGED SOLUTIONSTechnical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| CPU socket count | 1 |
|---|---|
| CPU class | Intel Xeon |
| Processor | 3rd Gen Intel® Xeon® Scalable processors Single Socket LGA-4189 (Socket P+) max 205W TDP |
| Chipset | C621A |
| Graphics | ASPEED AST2600 BMC |
| TPM | Header (provision) |
| Memory | Up to 2TB ECC RDIMM, DDR4-3200MHz; 8 DIMM slots |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 2 TB |
| ECC support | Yes |
| Storage | Internal: 1x M.2 NVMe; M-Key, 2280/22110 2x Disk on Module Removable 6x U.2 NVMe SSD or 9x 2.5” SATA / SAS SSD |
|---|
| Ethernet ports | 1x Dedicated IPMI LAN port 2x 10 GbE ports |
|---|---|
| Other I/O | Available on the rear: 1x COM; 1x IPMI LAN; 2x USB 2.0; 2x USB 3.2; 2x GbE; 1x VGA |
| IPMI management | IPMI2.0, SPM, Watchdog; SNMP and e-mail alarms and notifications |
|---|
| Expansion | 2x PCI-E 4.0 x16 slot FHFL 1x PCI-E 4.0 x16 slot (Low profile) |
|---|
| Power input | AC Redundant Power Supply – Optional Single DC Redundant Power Supply – Optional Single |
|---|
| Rack units | 1 U |
|---|---|
| I/O and power layout | Rear I/O and power |
| Dimensions | 483 x 44 x 510 mm from 19” brackets – 540 mm full depth |
| Chassis material | Aluminum with surface passivation treatment |
| Mounting | Rack Mount |
| Operating temperature | 0–50 °C |
|---|---|
| Storage temperature | -40–70 °C |
| Cooling | Fan (active) |
| Certifications | MIL-STD-461RoHSREACHMIL-STD-810 |
|---|
| Operating systems | WindowsWindows 10 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
