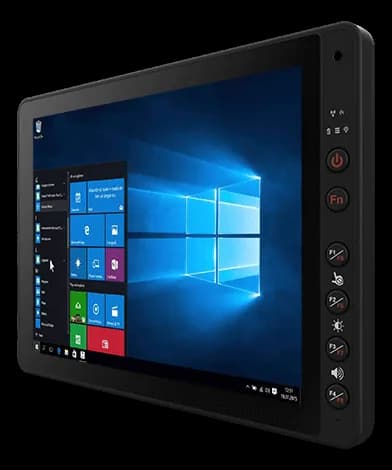

FM12E-V12.1" fanless IP65 panel PC with Intel Atom x and 4G/LTE
- Manufacturer
FM12E-V is an industrial panel PC with a 12.1" display and passive cooling, intended for use in harsh environments where sealing against dust and liquids and the absence of moving parts are required. The IP65 rating and VESA mounting make it usable on machines and at operator stations.
The wide 10~60 V power input range and the 45 W consumption allow integration into installations with heterogeneous onboard buses. Integrated 4G/LTE connectivity supports mobile and distributed scenarios; the integrated sensors (G-Sensor, Light Sensor, Temp Sensor) and the two cameras extend monitoring and acquisition functions.
At a glance
- CPU class: Intel Atom
- CPU frequency: 1.3–3.6 GHz
- TPM: TPM 2.0
- Memory: 4GB (Default) 8GB(Optional) 16GB(Optional) GB
- Storage: 1× Micro SD Card Slot
Technical specifications
| CPU class | Intel Atom |
|---|---|
| CPU generation | Elkhart Lake(optional)Amston Lake(optional) |
| Processor | Intel Atom x6413E 1.5GHz (up to 3GHz)(default)Intel Atom x7433RE 1.5 GHz (up to 3.4 GHz)(optional) |
| CPU frequency | 1.3–3.6 GHz |
| TPM | TPM 2.0 |
| Memory | 4GB (Default) 8GB(Optional) 16GB(Optional) GB |
|---|
| Storage | 1× Micro SD Card Slot128GB (Default) 256GB (Optional) 512GB (Optional)512GB(optional)256GB(optional) |
|---|
| Display size | 12.1 ″ |
|---|---|
| Touchscreen | PCAP |
| Brightness | 400-599 high cd/m²(default)600-999 outdoor cd/m²(optional) |
| Resolution | 1024x768 XGA |
| Contrast ratio | 1000:1 |
| Viewing angle | 89,89,89,89 |
| OSD controls | Button 1 x Power Button, 5 x Function Button (Programmable Function Key Configured by Winset) |
| Ethernet ports | 1× GbE (default), PSE IEEE 802.3at 30W (opzionale)(PoE · optional) |
|---|---|
| USB ports | 1× USB 2.0 (Type-A)1× USB Type-C |
| Serial interfaces | 2× RS-232/422/485 (default RS-232) |
| Audio | 1× audio (mic-in/line-out), in alternativa a DIDO, opzionale(optional) |
| Digital I/O | 1× DIDO (2 DI / 2 DO), in alternativa ad audio, opzionale(optional · out)1× DIDO (2 DI / 2 DO), in alternativa ad audio, opzionale(optional) |
| Camera | 2MP Camera |
| Sensors | G-Sensor, Light Sensor ,Temp Sensor |
| Other I/O | 1 x Power Button · 5 x Function Button, (Programmable Function Key Configured by Winset) |
| Wireless | 4G/LTEGPS/GNSS(optional) |
|---|
| Power input | 10–60 V |
|---|---|
| Power consumption | 45 W |
| Battery / UPS | 400mAh UPS Battery for 20 minutes backup(optional) |
| Battery runtime | 20 min(optional) |
| Mounting | VESA Mount |
|---|---|
| Weight | 2.4 kg |
| IP rating | IP65 |
|---|---|
| Cooling | Fanless |
| Storage temperature | -30–60 °C |
| Certifications | FCCCE |
|---|
| Operating systems | Windows 11 IoTWindows 10 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
