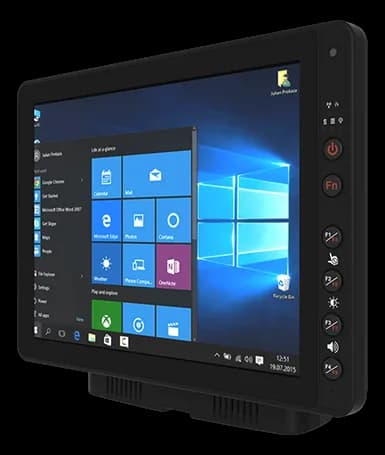

FM12E12.1" fanless IP65 panel PC with Intel Atom x and 4G/LTE connectivity
- Manufacturer
FM12E is an industrial panel PC with a 12.1" display and a contrast ratio of 1000, based on an Intel Atom x platform with a 1.3~3.6 GHz frequency and TPM 2.0. Fanless cooling and the IP65 rating make it usable in harsh environments, with VESA mounting and a storage temperature of -30~60 °C.
Wireless connectivity includes 4G/LTE and GPS/GNSS modules, while the set of integrated sensors (G-Sensor, Light Sensor, Temp Sensor) supports mobile and vehicle applications. The DC power input is selectable among nominal values of 10/12/60 V, with a declared consumption of 45 W.
At a glance
- CPU class: Intel Atom
- CPU frequency: 1.3–3.6 GHz
- TPM: TPM 2.0
- Memory: 4GB (Default) GB
- Storage: 128GB (Default)
Technical specifications
| CPU class | Intel Atom |
|---|---|
| CPU generation | Amston Lake(optional)Elkhart Lake(optional) |
| Processor | Intel Atom x7433RE 1.5 GHz (up to 3.4 GHz)(optional)Intel Atom x6413E 1.5GHz (up to 3GHz)(default) |
| CPU frequency | 1.3–3.6 GHz |
| TPM | TPM 2.0 |
| Memory | 4GB (Default) GB |
|---|
| Storage | 128GB (Default)1× Micro SD Card Slot(Tablet)512GB(optional)256GB(optional) |
|---|
| Display size | 12.1 ″ |
|---|---|
| Touchscreen | PCAP |
| Brightness | 600-999 outdoor cd/m²(optional)400-599 high cd/m²(default) |
| Resolution | 1024x768 XGA |
| Contrast ratio | 1000:1 |
| Viewing angle | 89,89,89,89 |
| OSD controls | Button 1 x Power Button, 5 x Function Button (Programmable Function Key Configured by Winset) |
| Ethernet ports | 1× GbE (docking) |
|---|---|
| USB ports | 1 x DB9 Connector for2× USB 2.0 (docking)1× USB Type-C (tablet) |
| Serial interfaces | 2× COM (docking) |
| Audio | 2× speaker (docking) |
| Camera | 2MP Camera |
| Sensors | G-Sensor, Light Sensor ,Temp Sensor |
| Other I/O | 1 x Power Button · 5 x Function Button, (Programmable Function Key Configured by Winset) |
| Wireless | 4G/LTEGPS/GNSS |
|---|
| AC/DC input | DC |
|---|---|
| Power input | DC 10/12/60 V (nominali a scelta) |
| Power consumption | 45 W |
| Battery / UPS | 7.6V UPS Battery (2S1P), Minimum 30 minutes |
| Battery runtime | 30 min |
| Mounting | VESA Mount |
|---|---|
| Weight | 1.7 kg |
| IP rating | IP65 |
|---|---|
| Cooling | Fanless |
| Storage temperature | -30–60 °C |
| Certifications | FCCCE |
|---|
| Operating systems | Windows 10 IoTWindows 11 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
