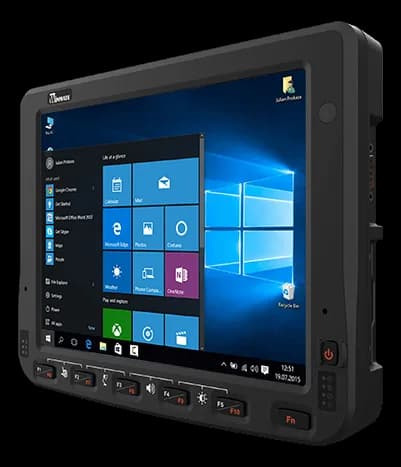

FM10E-V10.4" fanless panel PC with IP65 rating and a 10~60 V power input
- Manufacturer
FM10E-V is an industrial panel PC with a 10.4" display and fanless cooling, intended for use in harsh environments thanks to its IP65 protection rating and a storage range of -30~60 °C. The Intel Atom x platform runs between 1.3 and 3.6 GHz and supports Windows 10 IoT and Windows 11 IoT.
The wide 10~60 V power input range allows integration into onboard networks and installations with varying voltages, with a consumption of 45 W. Equipment includes 4G/LTE connectivity and a set of integrated sensors (G-Sensor, Light Sensor, Temp Sensor) for mobile and monitoring applications.
At a glance
- CPU class: Intel Atom
- CPU frequency: 1.3–3.6 GHz
- TPM: TPM 2.0
- Memory: 4GB (Default) 8GB(Optional) 16GB(Optional) GB
- Storage: 1× Micro SD Card Slot
Technical specifications
| CPU class | Intel Atom |
|---|---|
| CPU generation | Elkhart Lake(optional)Amston Lake(optional) |
| Processor | Intel Atom x7433RE 1.5 GHz (up to 3.4 GHz)(optional)Intel Atom x6413E 1.5GHz (up to 3GHz)(default) |
| CPU frequency | 1.3–3.6 GHz |
| TPM | TPM 2.0 |
| Memory | 4GB (Default) 8GB(Optional) 16GB(Optional) GB |
|---|
| Storage | 1× Micro SD Card Slot128GB (Default) 256GB (Optional) 512GB (Optional)512GB(optional)256GB(optional) |
|---|
| Display size | 10.4 ″ |
|---|---|
| Touchscreen | PCAP |
| Brightness | 400-599 high cd/m²(default)600-999 outdoor cd/m²(optional) |
| Resolution | 1024x768 XGA |
| Contrast ratio | 1200:1 |
| Viewing angle | 88,88,88,88 |
| OSD controls | Button 1 x Power Button, 6 x Function Button (Programmable Function Key Configured by Winset) |
| Ethernet ports | 1× GbE (default), PSE IEEE 802.3at 30W (opzionale)(PoE · optional) |
|---|---|
| USB ports | 1× USB Type-C1× USB 2.0 (Type-A) |
| Serial interfaces | 2× RS-232/422/485 (default RS-232) |
| Audio | 1× audio (mic-in/line-out), in alternativa a DIDO, opzionale(optional) |
| Digital I/O | 1× DIDO (2 DI / 2 DO), in alternativa ad audio, opzionale(optional · out)1× DIDO (2 DI / 2 DO), in alternativa ad audio, opzionale(optional) |
| Camera | 2MP Camera |
| Sensors | G-Sensor, Light Sensor ,Temp Sensor |
| Other I/O | 1 x Power Button · 6 x Function Button, (Programmable Function Key Configured by Winset) |
| Wireless | 4G/LTEGPS/GNSS(optional) |
|---|
| Power input | 10–60 V |
|---|---|
| Power consumption | 45 W |
| Battery / UPS | 400mAh UPS Battery for 20 minutes backup(optional) |
| Battery runtime | 20 min(optional) |
| Mounting | VESA Mount |
|---|---|
| Weight | 2.4 kg |
| IP rating | IP65 |
|---|---|
| Cooling | Fanless |
| Storage temperature | -30–60 °C |
| Certifications | CEFCC |
|---|
| Operating systems | Windows 11 IoTWindows 10 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
