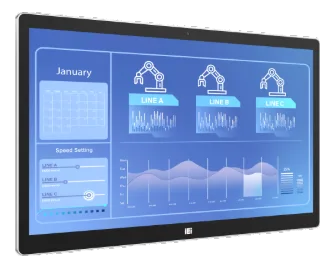

DM2-W270P-R1027" QHD industrial monitor with PCAP touch and IP65 compliant front panel
- Manufacturer
The DM2-W270P-R10 is an LCD monitor from the DM2 series, with flat bezel and sheet metal rear cover, designed for industrial automation and for control panels exposed to dust and water jets. Mounting is panel mount, with a 617 x 368 mm cutout, or on a VESA arm.
The touch is a 10-point projected capacitive type with treated surface: it stays operational with gloves and readable off-axis, with a 178°/178° viewing angle. The integrated USB 3.2 Gen1 hub brings the operator's peripherals to the monitor, not onto a return cable run to the control PC.
Also available in the Lite version DM2-W270PL-R10, without camera and speakers.
At a glance
- Integrated 720P wide angle camera
- Front speakers 2× 2W
- 5-key membrane front OSD
- USB 3.2 Gen1 Type-A with 7.5W
- Vibration per MIL-STD-810F 514.5C-1
Technical specifications
| Display size | 27(optional) |
|---|---|
| Touchscreen | PCAP |
| Brightness | Up to 399 standard |
| Resolution | 2560x1440 QHD |
| Contrast ratio | 1000 |
| Aspect ratio | 16:9(optional) |
| Viewing angle | 178°/178° |
| Display colors | 16.7M |
| Backlight MTBF | 30000 h |
| Touch controller | Capacitive:ilitek |
| Video outputs | 1× Display Port (1.2) 1x VGA (DB-15) 1x HDM |
| OSD controls | 5-key membrane OSD keypad · Front OSD, easy access for panel parameter adjustment |
| USB ports | 1× USB 3.2 Gen1 Type-B 4x USB 3.2 Gen1 Type-A |
|---|---|
| Audio | 2× 2W AMP (internal speaker) (\* L (Lite) without it)1× Line out |
| Camera | 720P Wide Angle Fixed Focus (\* L (Lite) without it) · Built-in camera, ideal for AI facial recognition |
| AC/DC input | DC(optional) |
|---|---|
| Power input | 1× DC Input Jack (9V-36V) |
| PSU power | 96 W(optional) |
| Mounting | Panel Mount(optional)VESA Mount(optional) |
|---|---|
| Dimensions | 636.24 x 393.16 x 52 |
| Cutout dimensions | 617× 368 |
| Weight | 10.2 kg |
| Chassis material | Aluminum front frame and sheet metal rear cover |
| Chassis color | Black+Silver |
| IP rating | Front IP65 |
|---|---|
| Operating temperature | 0–50 °C |
| Certifications | CE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
