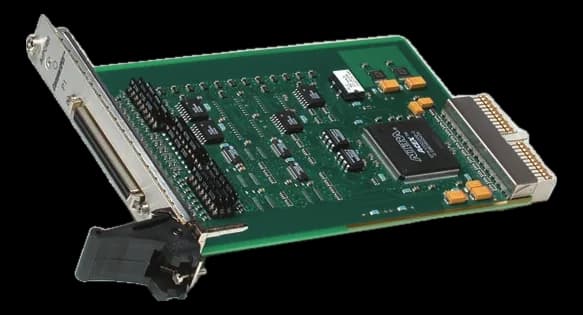

ACPC483CompactPCI counter/timer with TTL and RS422 channels
- Manufacturer
The module covers the counting functions in a CompactPCI system: quadrature position measurement, event counting, frequency and pulse width measurement.
The MTBF calculated according to MIL-HDBK-217F is 1,727,707 hours, a useful reference in projects with declared reliability requirements. The external clock is accepted up to 8 MHz, while the internal time base is programmable from software.
At a glance
- Board function: Clock / Timing
- Architecture standard: cPCI 3U
- Power consumption: 1.6 W
Technical specifications
| Counter | 4(TTL)4(RS422) |
|---|
| Board function | Clock / Timing |
|---|---|
| Architecture standard | cPCI 3U |
| Bus interface | Meets PCI spec. V2.2 and PICMG 2.0, R3.0. |
| Power consumption | 1.6 W |
|---|
| Storage temperature | -55–125 °C |
|---|---|
| MTBF | 1727707 h |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
