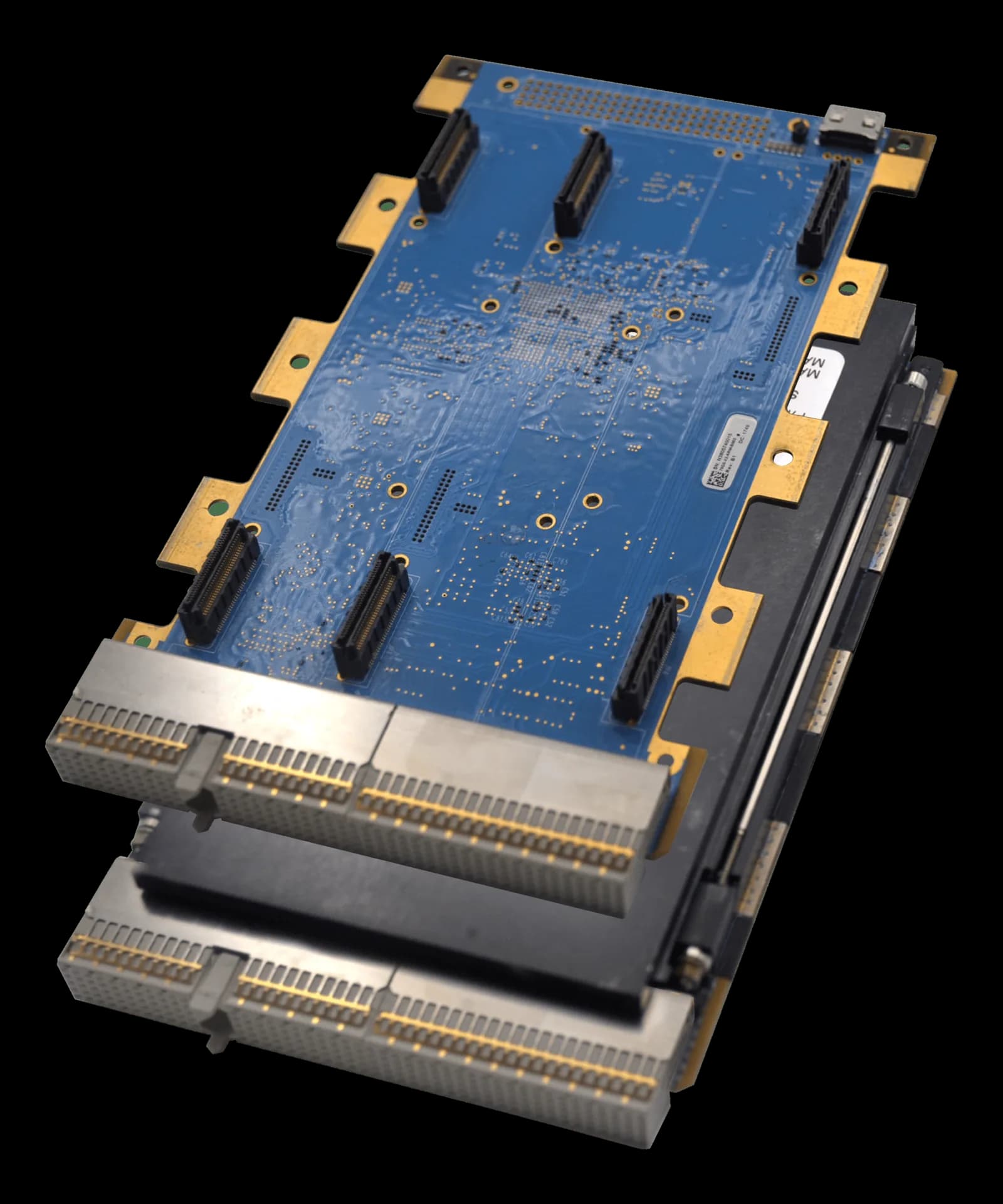

75G53U CompactPCI board with dual core Xilinx Zynq SoC
- Manufacturer
75G5 is a board in 3U CompactPCI form factor with on-board processing, suited to racks where acquisition and pre-processing of the data take place on the same module.
The board adapts automatically to a 5 V or a 3.3 V cPCI bus. The weight is 0.354 kg and the mechanical width is 4HP.
At a glance
- Processor: 1 - Xilinx Zynq 7015 with Dual Core Cortex A9
- CPU cores: 2
- Channels: 2 channel
- Board function: Analog and digital I/O
- Architecture standard: cPCI 3U
Technical specifications
| Processor | 1 - Xilinx Zynq 7015 with Dual Core Cortex A9 |
|---|---|
| CPU cores | 2 |
| Ethernet ports | two 10/100/1000 Base-T Ethernet portsThe 75G5 has two 10/100/1000 Base-T Ethernet ports, with the option to have one to the rear, one to the front I/O, or both to the rear.(optional) |
|---|---|
| Connectors | N-pin connector(male · front) |
| Other I/O | J4 pins 25, 50 (Connected to cPCI system ground). |
| Channels | 2 channel |
|---|
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | cPCI 3U |
| Form factor | 3U Eurocard |
| Bus interface | cPCIeThe 75G5 provides easy integration into a system by way of Gig-E or PCI Bus interface control capability. Gig-E interface is ideal for systems requiring high-speed communication, while PCI Bus interfa3.3 V signaling voltage and is 5 V tolerant |
| Weight | 0.354 kg |
|---|
| Storage temperature | -55–105 °C |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
