68PPC23U OpenVPX module with quad core NXP QorIQ processor
- Manufacturer

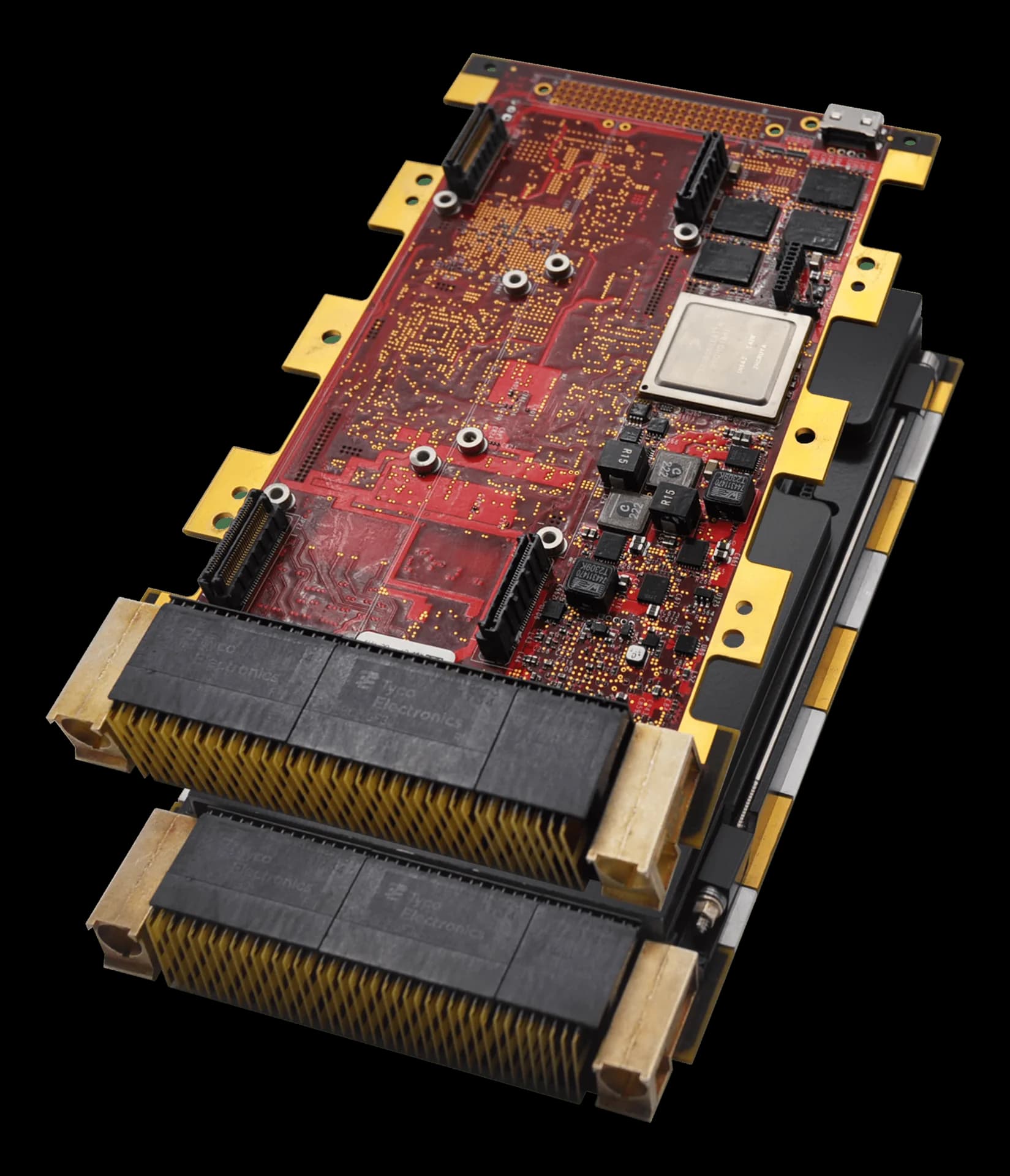

68PPC2 is a processing module in 3U OpenVPX form factor built around the four-core e6500 NXP QorIQ T2080 processor, with DDR3L memory protected by ECC and NAND SATA flash on board.
The declared OpenVPX profiles are SLT3-PAY-2F2U-14.2.3 and MOD3-PAY-2F2U16.2.3-3, while software support covers Wind River Linux and VxWorks, including the editions certified for safety applications. The module also runs a continuous diagnostic test in the background during operation.
At a glance
- CPU frequency: 1.5–1.8 GHz
- CPU cores: 4
- Memory: a total of 8 GB of ECC DDR3L memory
- ECC support: Yes
- RAM type: DDR3L
Technical specifications
| CPU frequency | 1.5–1.8 GHz |
|---|---|
| CPU cores | 4 |
| Memory | a total of 8 GB of ECC DDR3L memoryon chip 64-bit DDR3 memory controller with full ECC error-correction support |
|---|---|
| ECC support | Yes |
| RAM type | DDR3L |
| Ethernet ports | two 10/100/1000Base-TX or two 1000Base-KX Ethernet portstwo high-speed USB 3.0 ports (Contact Factory)Dual Gig-E port option(s) are available and defined (See Part Number Designation section)(optional) |
|---|---|
| Serial interfaces | RS232 Serial debug port |
| Connectors | N-pin connector(male · front) |
| Board function | CPU / Processor |
|---|---|
| Form factor | 3U Eurocard |
| Architecture standard | VITA 48 REDIVPX (VITA 46)OpenVPX VITA 65 |
| Bus interface | Four PCIe interfaces; 1x4 and 4x1 PCIe ports for VPX communicationRoot-complex ultra-thin pipes; four (4) PCIe GEN 2.0(x1) ports |
| Dimensions | 20.3 × 160 mm |
|---|---|
| Rack units | 3 U |
| Weight | 0.329 kg |
| Operating temperature | -40–85 °C |
|---|---|
| Storage temperature | -55–105 °C |
| Operating systems | LinuxVxWorks |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
