XRSIP-353RO-S8Extreme Rugged Edge Servers with IP54 protection rate
- Manufacturer

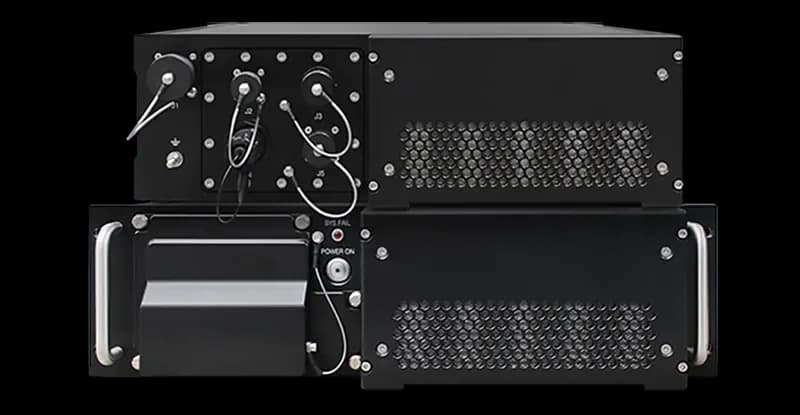

XRS 3U-IP S8 SOLO delivers rugged performance with a single 5th/4th Gen Intel® Xeon® Scalable Processor, featuring advanced security, PCIe 4.0/5.0 support, and AI acceleration. The integrated IPMI services support monitoring, control, and management functions, sending alarm notifications in case of critical events. XRS 3U-IP S8 SOLO Extreme Rugged Server has an IP54 protection rate and features a 3U milled aluminium chassis designed to provide superior resistance. The unit is equipped with MIL-grade connectors for I/O ports and for power input. XRS 3U-IP S8 SOLO can host up to five full-size PCIe boards including GPU, FPGA modules, and any other high-performance PCI Express board. The front panel includes VGA, IPMI LAN, USB 3.2, and a removable battery holder. Two 3.5” drive bays can host up to six removable SSDs. Qualified according to MIL-STD-810G for temperature, shocks, and vibrations, and conforming to MIL-STD-461G for EMI/EMC, the XRS Series Extreme Rugged Servers are robustly built to meet the stringent requirements of Edge computing environments.
At a glance
- 810G MIL-STD Qualified
- IP54 Ingress Protection
- 461G MIL-STD EMC
- 3U Rack-Mount
A GOMA ELETTRONICA division
A GOMA RUGGED SOLUTIONS product
The XRS IP series belongs to GOMA RUGGED SOLUTIONS, GOMA's division for MIL-STD qualified systems. The full datasheet for this model, with configurations and qualifications, lives on its own site.
Visit GOMA RUGGED SOLUTIONSTechnical data
Finishes
Standard colours. Other RAL finishes on request from our engineering team.
- RAL 9005Jet black
Technical specifications
| CPU socket count | 1 |
|---|---|
| CPU class | Intel Xeon |
| Processor | 5thGen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP Up to 350W TDP |
| Chipset | C741 |
| Graphics | 1x Aspeed AST2600 BMC port |
| TPM | Header (provision) |
| Memory | Up to 2TB ECC RDIMM, DDR5-4800MT/s in 8 DIMM slots |
|---|---|
| RAM type | DDR5 |
| Maximum RAM | 2 TB |
| ECC support | Yes |
| Storage | Internal: 2x M.2 NVMe; M-Key, 2280/22110 2x SATA Disk on Module Removable: Up to 4x U.2 NVMe SSD or Up to 6x 2.5” SATA SSD |
|---|
| Ethernet ports | 1x Dedicated IPMI LAN port 2x 10GbE with RJ45 connectors |
|---|---|
| USB ports | On board: 2x USB 3.2 ports |
| IPMI management | IPMI2.0, SPM, Watchdog; SNMP and e-mail alarms and notifications |
|---|
| Expansion | 2x PCIe 5.0 x16 3x PCIe 5.0 x8 |
|---|
| Power input | AC or DC input with EMC Filter and MIL D38999 connector |
|---|
| Rack units | 3 U |
|---|---|
| Dimensions | Width 483mm Depth 530mm including MIL grade connectors on I/O ports and power input Height 132mm – 3U rack |
| Rugged / conformal coating | Conformal coating on request |
| Chassis material | Milled Aluminum chassis with surface passivation treatment |
| Mounting | Rack Mount |
| Operating temperature | -5–55 °C |
|---|---|
| Storage temperature | -40–71 °C |
| Cooling | Fan (active) |
| IP rating | IP54 |
| Certifications | MIL-STD-461MIL-STD-810 |
|---|
| Operating systems | WindowsWindows 10 IoTWindows 11 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
