TPMC8102-channel PMC mezzanine module, air cooled and RoHS compliant
- Manufacturer
- Configurations
- 1 available configurations

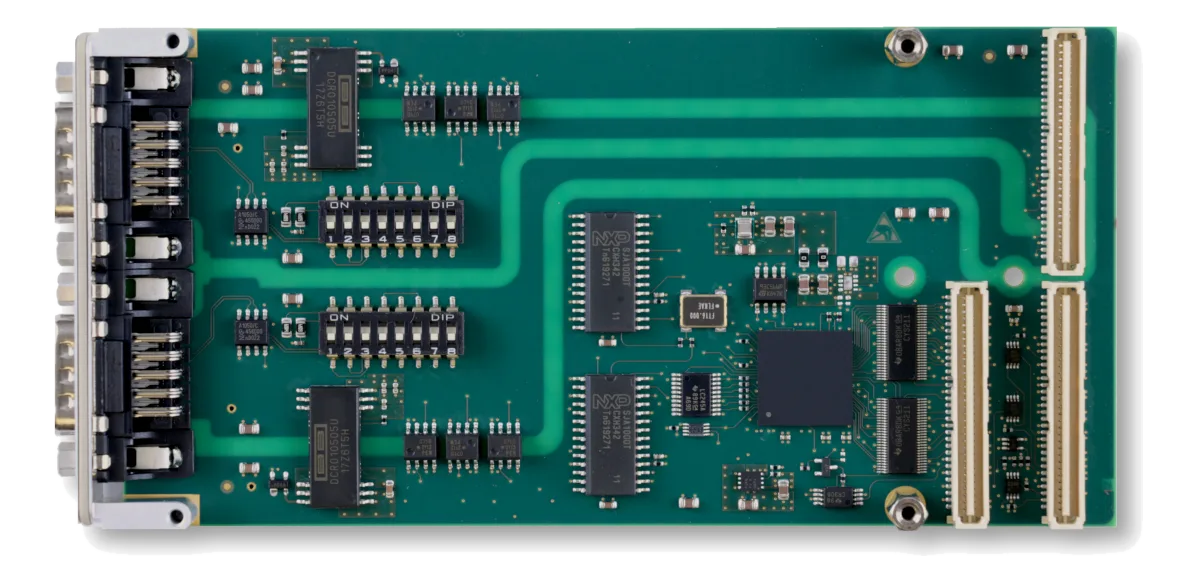

TPMC810 is a mezzanine module in PMC form factor. It plugs into the PMC site of a carrier board, which supplies bus and power, and adds the interface towards the field without taking a slot of the rack.
The environmental profile is the axis that characterizes it: air cooling, a declared operating temperature of -40~85 °C and storage up to 125 °C, with a RoHS declaration of conformity.
The versions of the family are identified by the ordering suffix, for instance TPMC810-10R.
At a glance
- Channels: 2 channel
- Architecture standard: PMC
- Board function: Fieldbus
- Power consumption: 1.03 W
- Cooling: Air-cooled (VITA class)
Technical specifications
| Connectors | Mezzanine P14/P15/P16 |
|---|
| Channels | 2 channel |
|---|---|
| Isolation | Yes(opto) |
| Isolation & signal | 120 ohms split termination network |
| Architecture standard | PMC |
|---|---|
| Board function | Fieldbus |
| Bus interface | PCI3.0 compatible interface, 32 bit, 33 MHz |
| Power consumption | 1.03 W |
|---|
| Dimensions | 147 × 74 mm |
|---|---|
| Weight | 0.073 kg |
| Cooling | Air-cooled (VITA class) |
|---|---|
| Operating temperature | -40–85 °C |
| Storage temperature | -40–125 °C |
| MTBF | 529075 h(GB · MIL-HDBK217F/FN2)527122 h(MIL-HDBK-217F Notice 2) |
| Certifications | RoHS |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
