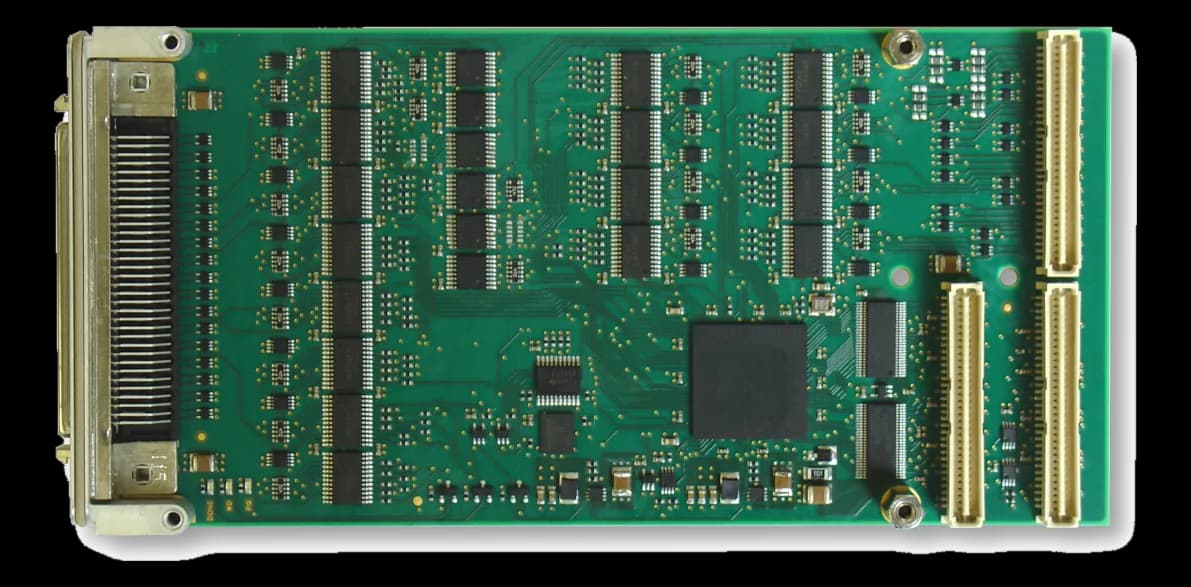

TPMC685 I 16 x 8 Bit Digital Inputs/Outputs (5V TTL) PMC Module

TPMC685PMC analog/digital I/O mezzanine module with protected inputs

Manufacturer
Configurations: 7 available configurations

TPMC685 is a mezzanine module in PMC form factor for analog/digital I/O. It mounts on the carrier board and brings the input and output lines towards the field units, without a separate acquisition subsystem.

Cooling is by air and the declared temperature is -40~85 °C both in operation and in storage; the I/O lines are protected against electrostatic discharge and overvoltage, a condition that counts when the cabling leaves the cabinet.

The versions of the family are identified by the ordering suffix, for instance TPMC685-10R.

At a glance

Architecture standard: PMC
Board function: Analog and digital I/O
Power consumption: 1.15 W
Cooling: Air-cooled (VITA class)
Operating temperature: -40–85 °C

Request information Full specifications ↓

Technical specifications

Connectors	Mezzanine P14/P15/P16SCSI-3 (HD68)(female · AMP# 787082-7 · front)

I/O protection	OvervoltageESD
Counter	noactiveInterruptRequest R 0

Architecture standard	PMC
Board function	Analog and digital I/O
Bus interface	PCI Rev. 3.0 compliant, 33 MHz / 32 bit PCI, 3.3V and 5V PCI Signaling Voltage tolerantPCIRev.3.0compliant 33MHz/32bitPCI 3.3Vand5VPCISignalingVoltagetolerant

Power consumption	1.15 W

Weight	0.075 kg

Cooling	Air-cooled (VITA class)
Operating temperature	-40–85 °C−40~85(optional)
Storage temperature	-40–85 °C
MTBF	617000 h(GB · MIL-HDBK-217F Notice 2)
