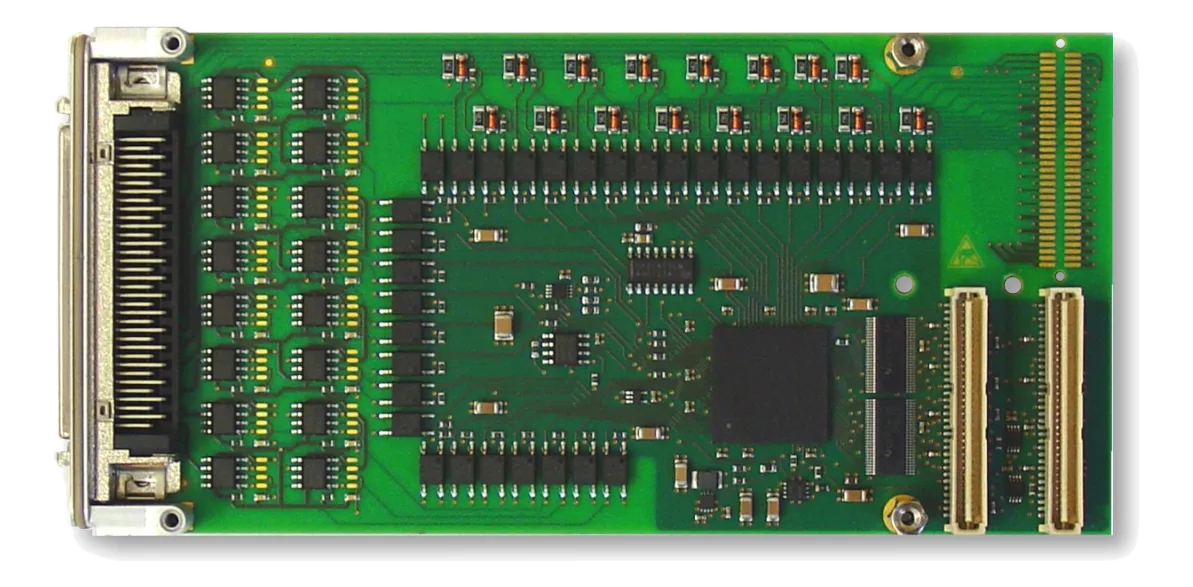

TPMC671PMC analog/digital I/O mezzanine module with SCSI-3 connector
- Manufacturer
- Configurations
- 4 available configurations
TPMC671 is a mezzanine module in PMC form factor for analog/digital I/O. The PMC site of the carrier board supplies bus and power; the module brings the measurement and command lines towards the field, without taking a backplane slot.
Cooling is by air: the module relies on the ventilation of the rack that hosts it and requires no dedicated conductive path towards the carrier board.
The configurations of the family differ in I/O connector; an ordering example is TPMC671-10R.
At a glance
- Architecture standard: PMC
- Board function: Analog and digital I/O
- Power input: DC V
- Cooling: Air-cooled (VITA class)
Technical specifications
| Connectors | SCSI-3 (HD68) |
|---|
| Isolation | Yes(opto · ch ch) |
|---|
| Architecture standard | PMC |
|---|---|
| Board function | Analog and digital I/O |
| Bus interface | PCI Rev. 3.0 compliant, 33 MHz / 32 bit PCI, 3.3V and 5V PCI Signaling Voltage |
| Power input | DC V |
|---|
| Weight | 0.074 kg |
|---|
| Cooling | Air-cooled (VITA class) |
|---|---|
| Operating temperature | −25~85(optional) |
| MTBF | 860000 h(GB · MIL-HDBK-217F Notice 2) |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
Columns show only what changes between configurations: the rest of the sheet applies to the whole family.
| Configuration (PN) | Connectors |
|---|---|
| TPMC671-10R | SCSI-3 (HD68) |
| TPMC671-11R | SCSI-3 (HD68) |
| TPMC671-20R | Mezzanine P14/P15/P16 |
| TPMC671-21R | Mezzanine P14/P15/P16 |
