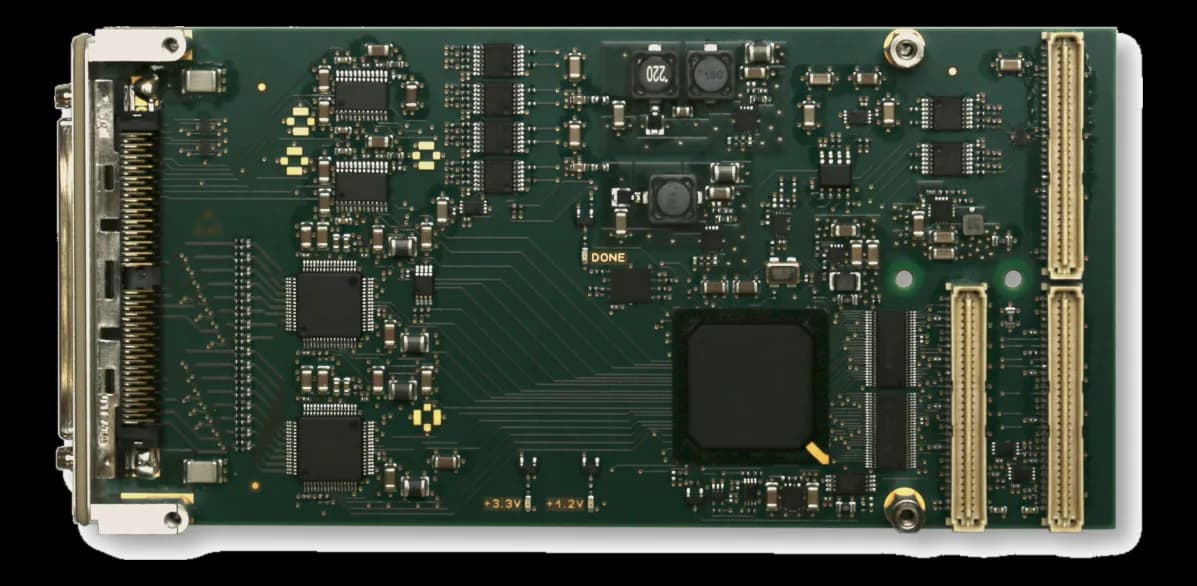

TPMC533PMC analog/digital I/O mezzanine module, 8, 16 or 32 channels
- Manufacturer
- Configurations
- 2 available configurations
TPMC533 is a mezzanine module in PMC form factor for analog/digital I/O: it collects the field signals and makes them available to the software running on the carrier board, without a separate acquisition rack.
Cooling is by air and the declared operating temperature is -40~85 °C, compatible with industrial cabinets without climate control.
The family is available in 8, 16 or 32 channel versions; the configurations differ in number of channels and weight, for instance TPMC533-10R.
At a glance
- FPGA / processing: Spartan-6 (Xilinx)
- Architecture standard: PMC
- Board function: Analog and digital I/O
- Power consumption: 2.75 W
- Cooling: Air-cooled (VITA class)
Technical specifications
| FPGA / processing | Spartan-6 (Xilinx) |
|---|
| Connectors | SCSI-3 (HD68)SCSI-2 (HD50)(male) |
|---|---|
| Other I/O | Digital I/O 1 ... Digital I/O 8 |
| Acquisition specifications | Min 500ns / Max ½ TGLO_CON_CLK(trigger) |
|---|---|
| I/O protection | ESDOvervoltage(±16.5V) |
| Architecture standard | PMC |
|---|---|
| Board function | Analog and digital I/O |
| Bus interface | PCI Rev. 3.0 compatible; 33MHz / 32bit PCI; Initiator/Target; 3.3V and 5V PCI Signaling Voltage |
| Power consumption | 2.75 W |
|---|
| Cooling | Air-cooled (VITA class) |
|---|---|
| Operating temperature | -40–85 °C−40~85(optional) |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
Columns show only what changes between configurations: the rest of the sheet applies to the whole family.
| Configuration (PN) | Weight(kg) | MTBF(h) |
|---|---|---|
| TPMC533-10R | 0.073 | 487000 |
| TPMC533-20R | 0.072 | 497000 |
