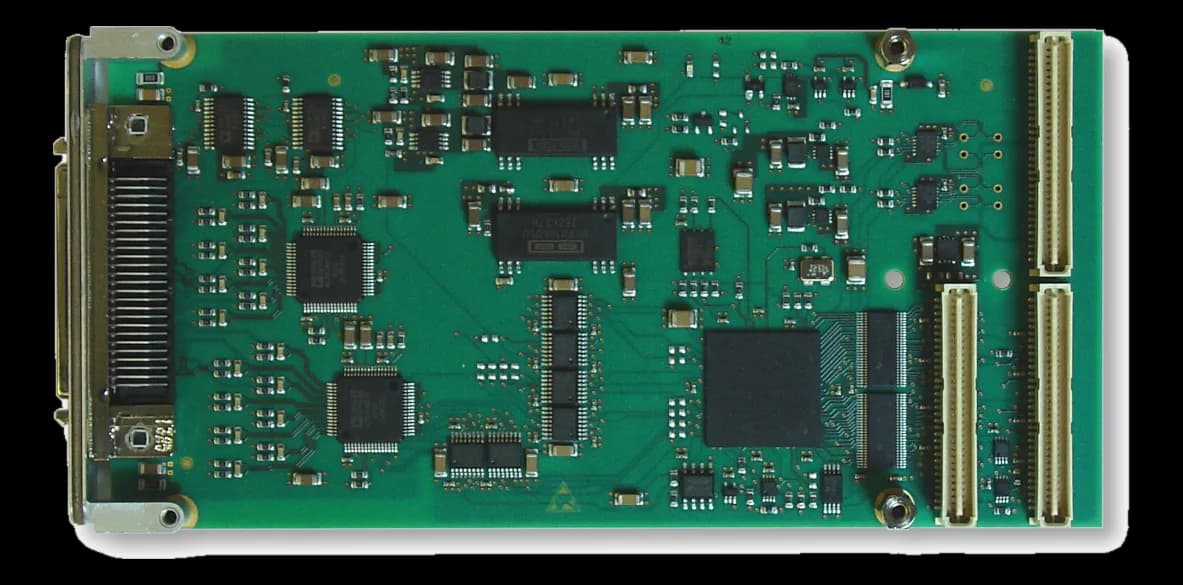

TPMC530 I 16/8 Channel Isolated Simultaneous Sampling AD/DA PMC Module

TPMC53016-channel PMC analog/digital I/O mezzanine module

Manufacturer
Configurations: 2 available configurations

TPMC530 is a mezzanine module in PMC form factor for analog/digital I/O. It mounts on the carrier board and brings the measurement or command lines close to the processor, without a separate acquisition rack.

Cooling is by air and the declared temperature is -40~85 °C both in operation and in storage: a window that covers industrial installations without climate control.

The versions of the family are identified by the ordering suffix, for instance TPMC530-10R.

At a glance

Serial interfaces: RS-485
Channels: 16 channel
Acquisition specifications: RS-485; trigger impulse must be at least 25 ns long; Sync output pulse duration is 100 ns
Architecture standard: PMC
Board function: Analog and digital I/O

Request information Full specifications ↓

Technical specifications

Connectors	SCSI-2 (HD50)(AMP# 787395-5 · front)
Serial interfaces	RS-485

Channels	16 channel
Acquisition specifications	RS-485; trigger impulse must be at least 25 ns long; Sync output pulse duration is 100 ns
I/O protection	ESDOvervoltage(±16.5 V)

Architecture standard	PMC
Board function	Analog and digital I/O
Bus interface	PCI Rev. 3.0 compatible, 33 MHz / 32 bit PCI, 3.3 V and 5 V PCI Signaling Voltage
