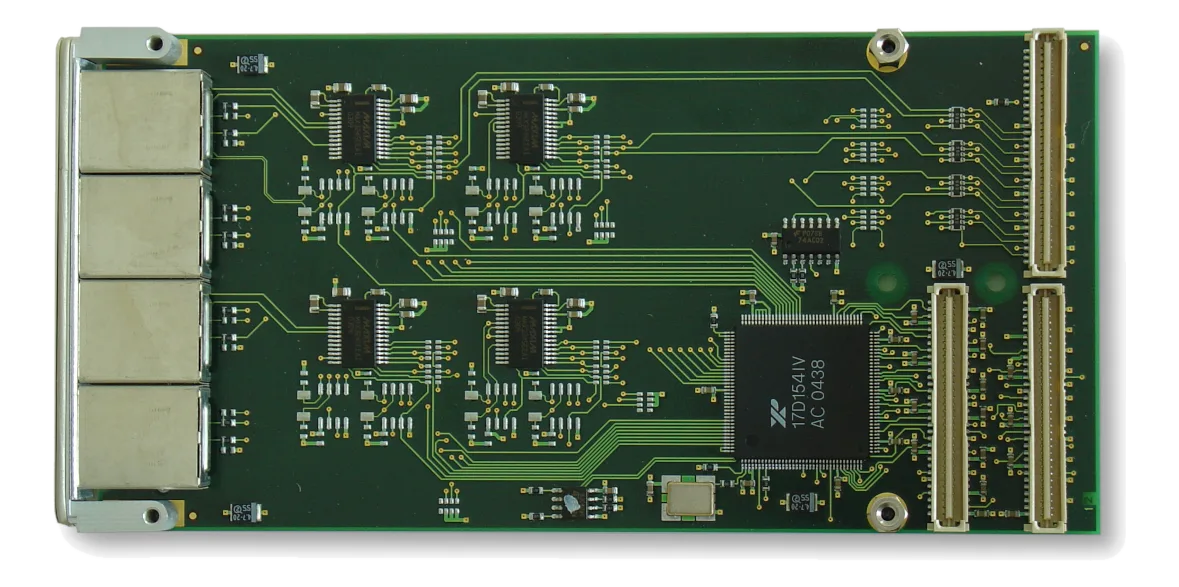

TPMC463 I 4 Channel RS232/RS422 Serial Interface (RJ45) PMC Module

TPMC4634-channel PMC serial mezzanine module, RS232 or RS422

Manufacturer
Configurations: 5 available configurations

TPMC463 is a mezzanine module in PMC form factor for serial communication. The PMC site of the carrier board supplies bus and power; the serial lines leave the module towards the units connected to the system. Cooling is by air, with a -40~85 °C operating temperature and a storage range from -55 to 125 °C. The configurations of the family differ in serial interface — RS232, RS422 or mixed combinations on an RJ45 connector — as well as in consumption and MTBF, for instance TPMC463-10R.

At a glance

Channels: 4 channel
Architecture standard: PMC
Board function: Serial
Power consumption: 0.15 W
Cooling: Air-cooled (VITA class)

Request information Full specifications ↓

Technical specifications

Connectors	Mezzanine P14/P15/P16RJ45
Serial interfaces	TPMC463-10R: 4 RS232 TPMC463-11R: 4 RS422 TPMC463-12R: 2 RS232 / 2 RS422 TPMC463-20R: 4 RS232(RS232: MAX3245E (or equivalent) RS422: MAX3087E (or equivalent))

Channels	4 channel
I/O protection	ESD(HBM · RS232)ESD(IEC contact · RS232)ESD(IEC air · RS232)ESD(HBM · RS422)

Architecture standard	PMC
Board function	Serial
Bus interface	PCI Rev. 2.3 compliant, 33 MHz / 32 bit PCI, 3.3V and 5V PCI Signaling VoltagePCIRev.2.3compliant
