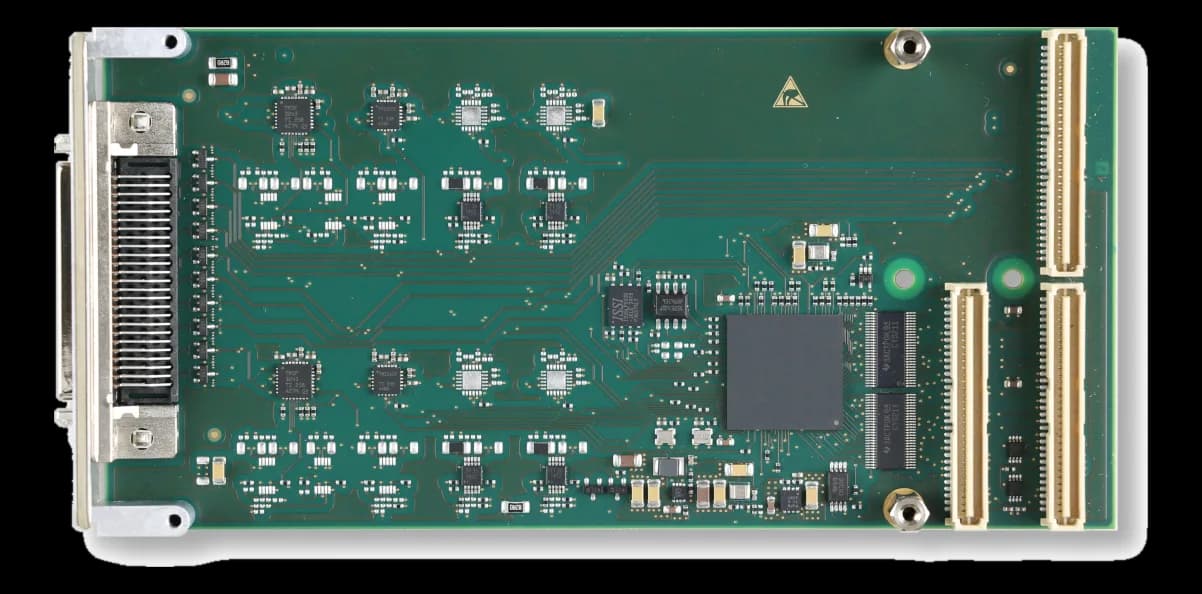

TPMC461 I 8 Channel RS232/RS422 Serial Interface PMC Module

TPMC4618-channel PMC serial mezzanine module, air cooled

Manufacturer
Configurations: 3 available configurations

TPMC461 is a mezzanine module in PMC form factor for serial communication. It plugs into the PMC site of the carrier board and brings the serial ports towards the field: the function stays on the compute board and the rack does not change. Cooling is by air, with a -40~85 °C operating temperature: a window that covers industrial installations without climate control. The configurations of the family differ in consumption; an ordering example is TPMC461-10R.

At a glance

Channels: 8 channel
Acquisition specifications: Trigger
Architecture standard: PMC
Board function: Serial
Cooling: Air-cooled (VITA class)

Request information Full specifications ↓

Technical specifications

Connectors	Mezzanine P14/P15/P16SCSI-2 (HD50)(AMP# 787395-5)
Serial interfaces	TPMC461-10R: 8 RS232 (2 x with Full Modem) TPMC461-11R: 8 RS422 (2 x with RTS & CTS) TPMC461-12R: 4 RS232 (2 x with Full Modem), 4 RS422(TRS3122E (or equivalent))

Channels	8 channel
Acquisition specifications	Trigger
I/O protection	ESD

Architecture standard	PMC
Board function	Serial
Bus interface	PCI Rev. 3.0 compliant, 33 MHz / 32 bit PCI, 3.3 V and 5 V PCI Signaling VoltagePCI Rev. 3.0 compatible 33 MHz / 32 bit PCI Target 3.3V and 5V PCI Signaling Voltage compatible
