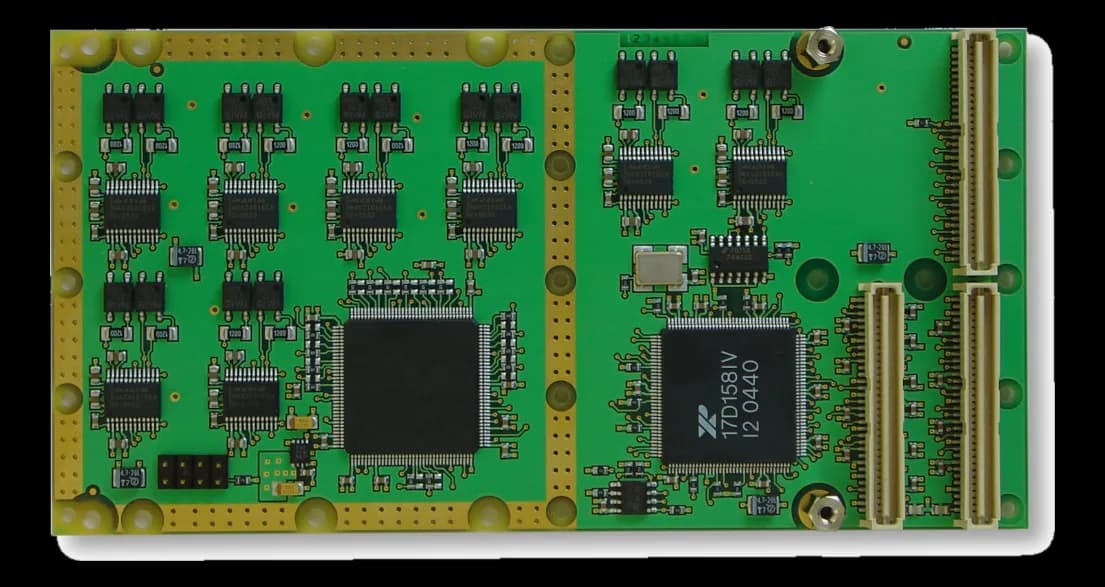

TPMC3758-channel PMC serial mezzanine module, conduction-cooled
- Manufacturer
- Configurations
- 1 available configurations
TPMC375 is a mezzanine module in PMC form factor for serial communication. It plugs into the carrier board and extends its I/O towards the field: the serial function stays on the compute board, without additional hardware in the rack.
The distinctive trait is environmental: conduction-cooled build and declared operating temperature -40~85 °C, with the heat given off by conduction to the host board instead of to an air flow.
The versions of the family are identified by the ordering suffix, for instance TPMC375-10R.
At a glance
- Channels: 8 channel
- Architecture standard: PMC
- Board function: Serial
- Cooling: Conduction-cooled
- Operating temperature: -40–85 °C
Technical specifications
| Connectors | Mezzanine P14/P15/P16 |
|---|---|
| Serial interfaces | 584SR/232SR(MAX3161E)Software selectable RS232, RS422, RS485 full duplex, RS485 half duplex(full/half · MAX3161E) |
| Channels | 8 channel |
|---|---|
| Isolation & signal | Programmable Termination for RS422/RS485(software) |
| I/O protection | ESD |
| Counter | General Purpose 16 bit Timer/Counter |
| Architecture standard | PMC |
|---|---|
| Board function | Serial |
| Bus interface | PCI Rev. 2.3 compliant; 33 MHz / 32 bit PCI; 3.3V and 5V PCI Signaling Voltage3.3V and 5.0V PCI I/O signaling voltage5V and 3.3V |
| Dimensions | 143.75 × 74 mm |
|---|---|
| Weight | 0.054 kg |
| Cooling | Conduction-cooled |
|---|---|
| Operating temperature | -40–85 °C |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
