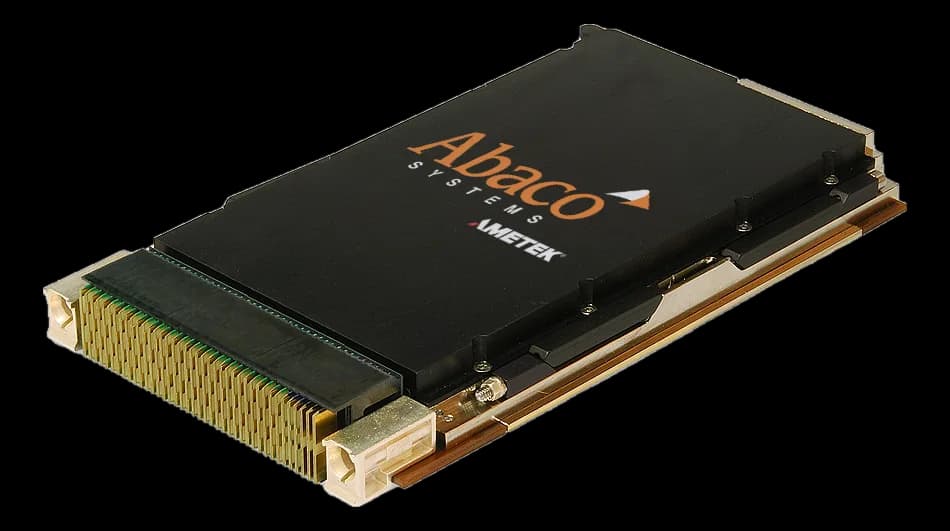

SBC3518Rugged 3U VPX single board computer with Intel Core Ultra 9, aligned to SOSA
- Manufacturer
SBC3518 is a single-slot single board computer in 3U VPX (VITA 46) format, for programmes ranging from industrial to fully rugged defense and aerospace. It is available in air-cooled and conduction-cooled build levels, aligned to the SOSA technical standard and supporting the DoD CMOSS (C4ISR/EW Modular Open Suite of Standards).
The CPU, GPU and NPU units of the Core Ultra 9 work in combination and are rated up to 100 TOPS on AI workloads, without an accelerator on a separate slot. Security does not stop at the BIOS: on the Xilinx Zynq UltraScale+ ZU5EG FPGA, with advanced security functions, you can host your own application functions, with TPM 2.0 and hardware write-protect included.
At a glance
- 16-core hybrid architecture
- Integrated NPU5 with 50 TOPS
- Integrated GPU 4× Xe3, 40 TOPS
- 64 GB soldered LPDDR5x with ECC
- Up to 1 TB on-board NVMe SSD
Technical specifications
| Processor | Intel® Core Ultra 9 formerly known as Panther Lake |
|---|---|
| FPGA / processing | Xilinx Zynq UltraScale+ FPGA (ZU5EG) with advanced security features |
| CPU cores | 16 |
| Memory | 64 GB of high speed LPDDR5x SDRAM and up to 1TB NAND Flash (NVMe SSD) |
|---|---|
| ECC support | 2× channels of soldered LPDDR5x SDRAM with ECC up to 64 GB |
| Storage | 1× SATA 6 Gb/s capable port is routed on P2 · Up to 1TB NAND Flash (NVMe SSD) · 2 MB FRAM (BIT / User) |
|---|
| Graphics | Integrated 4× Xe3 GPU architecture. |
|---|
| Video outputs | 1× DisplayPort is routed to P2 |
|---|
| Ethernet ports | ETH0 is configured as 2500BASE-T, and routed to P2 · 1x 2500BASE-T |
|---|---|
| Serial interfaces | Two 16C550 compatible async serial ports are available on P1 and P2MP01 can be configured as a 2-wire RS-232 port, or a 2-wire 3.3V-tolerant LVCMOS port. SER01 can be configured as a 4-wire RS-422 port, or two 2-wire RS-232 (SER01A and SER01B) |
| Board function | CPU / Processor |
|---|---|
| Form factor | 3U Eurocard |
| Architecture standard | VPX (VITA 46)SOSAXMC VITA 42/61 |
| OpenVPX profile | Slot Profile SLT3-PAY1F1F2U1TU1T1U1T-14.2.16 |
| IPMI management | Baseboard Management Controller (BMM) in accordance with VITA 46.11-2022 Tier 3 IPMC · IPMI Management Plane |
| Expansion | x8 PCIe Gen 4One XMC sitex8d+x16s tracked to P2 |
|---|
| Power input | +3.3V for P3V3_AUX is required |
|---|
| Rugged / conformal coating | Air and Conduction |
|---|
| Cooling | Air-cooled (VITA class)Convection(optional) |
|---|
| Operating systems | Linux(optional)Windows(optional) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
