RK1215.1" rugged notebook with a 6th-generation Intel Core i7 CPU
- Manufacturer

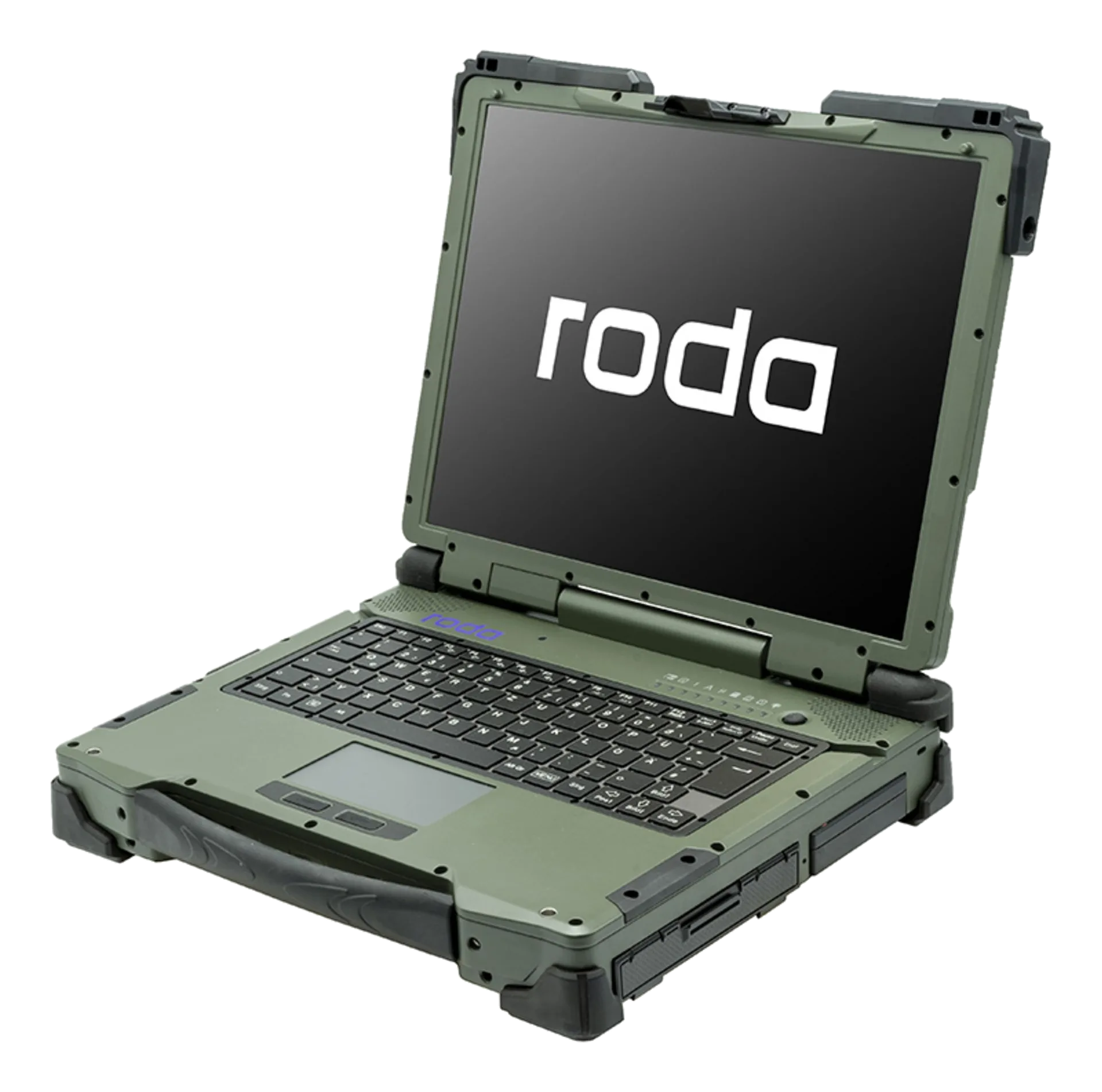

The RK12 from RODA is a rugged notebook meant for those who work outside the office: field maintenance, special vehicles and mobile stations exposed to severe environmental conditions.
The platform combines 4 MB of cache and a frequency up to 2.80 GHz with integrated Intel HD Graphics 530, plus a TPM 2.0 module on the security side. The Surge / Transient electrical protections on the power input and the MIL-STD-810 and MIL-STD-461 qualifications allow use on vehicles and in defense programs.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- Processor: Intel ® 6th Gen. Core™ i7-6822EQ processor, 4 MB cache, up to 2.80 GHz
- CPU frequency: 2.8 GHz
- TPM: TPM 2.0
- RAM type: DDR4
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| Processor | Intel ® 6th Gen. Core™ i7-6822EQ processor, 4 MB cache, up to 2.80 GHz |
| Graphics | Intel ® HD Graphics 530 |
| CPU frequency | 2.8 GHz |
| TPM | TPM 2.0 |
| Security & watchdog | Optional: Smart Card Reader |
| RAM type | DDR4 |
|---|---|
| Maximum RAM | 32 GB |
| Memory | up to 32 GB (2× SO-DIMM slots)DDR4 |
| Storage | Exchangeable 2.5” SATA III HDD / SSD |
|---|
| Display size | 15.1 ″ |
|---|---|
| Resolution | 1024x768 XGA1600x1200(optional) |
| Video outputs | 1× DVI (with roda display remote)1× VGA (DB15)1× DisplayPort |
| OSD controls | USB CHARGE Setting |
| USB ports | 2× USB3.1 Gen. 12× USB2.0 (1× fast charge) |
|---|---|
| Audio | 3× Audio (3.5 mm jack) |
| Ethernet ports | 1× GBit LAN (RJ45) additional1× Fiber-LAN (100FX, 1000LX, 1000SX) additional |
| Serial interfaces | 2× COM (DB9) |
| Other I/O | 1× MIL DC-In (3-Pin) · 1× DockUnder docking solution |
| Wireless | Wi-Fi(optional) |
|---|
| PSU power | 90 W |
|---|---|
| Battery capacity | 94 Wh |
| Weight | 50 kg |
|---|
| IP rating | IP65 |
|---|
| Certifications | MIL-STD-461MIL-STD-810 |
|---|
| Operating systems | Windows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
