OM-215HOpen-frame industrial touch monitor, 21.5" high brightness, PCAP and IP65 front
- Manufacturer

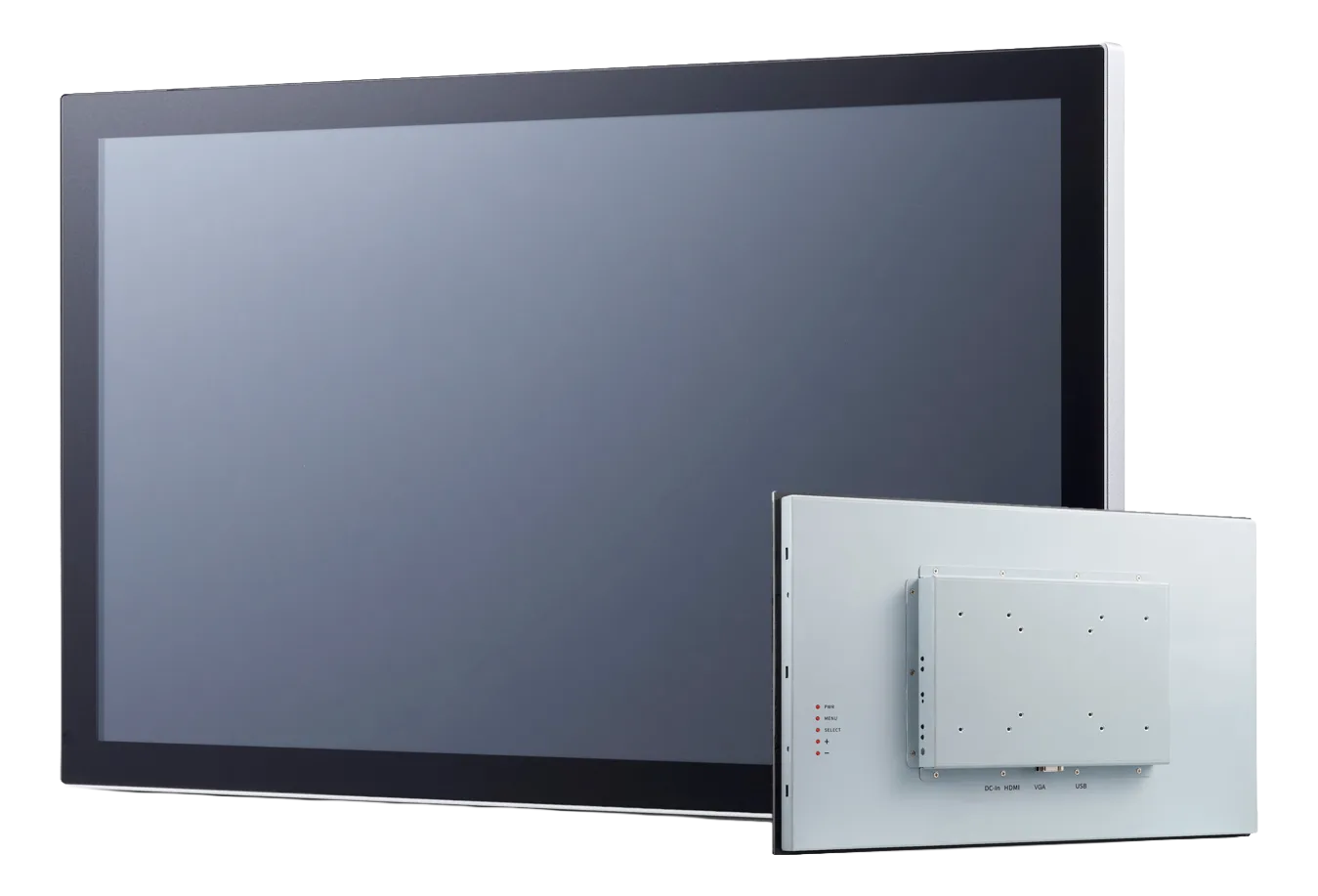

OM-215H is the 21.5" open-frame touch monitor of the ADLINK OM series, designed for integration into control cabinets and machines where the screen must remain readable even under intense light. It connects to an external PC and works as a display and control surface, not as a computer: 10-point touch input reaches the host via USB.
It is the high brightness variant of the widescreen range: 1200 nit measured with the touch panel fitted. The 1000:1 contrast ratio and the 89° viewing angle on all four sides keep the image readable in both landscape and portrait orientation. The air-bonded panel operates from −10 to 60 °C and draws 41.2 W.
At a glance
- 50,000 h LED backlight
- Glass with 7H surface hardness
- Anti-fingerprint treatment on the touchscreen
- Panel, VESA or wall mounting
- 12 VDC power supply
Technical specifications
| Display size | 21.5 |
|---|---|
| Resolution | 1920x1080 FHD |
| Aspect ratio | 16:9 |
| Brightness | 1000+ sunlight |
| Touchscreen | PCAP |
| Video inputs | HDMI(optional)VGA(optional) |
| Display colors | 16.7M |
| Touch points | 10 |
| Optical bonding | Air bonding |
| Viewing angle | 89/89/89/89 |
| Contrast ratio | 1000 |
| Backlight MTBF | 50000 h |
| Surface hardness | 7H |
| USB ports | USB type B (for touch) |
|---|---|
| Audio | w/o Audio |
| AC/DC input | DC |
|---|---|
| Supply voltage | 12 V DC |
| Power consumption | 41.2 W |
| Mounting | Panel MountVESA MountWall Mount |
|---|---|
| Weight | 5.1–5.6 kg |
| Dimensions | 620× 440 x 176 |
| IP rating | Front IP65 |
|---|---|
| Storage temperature | -20–60 °C |
| Operating temperature | -10–60 °C |
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
